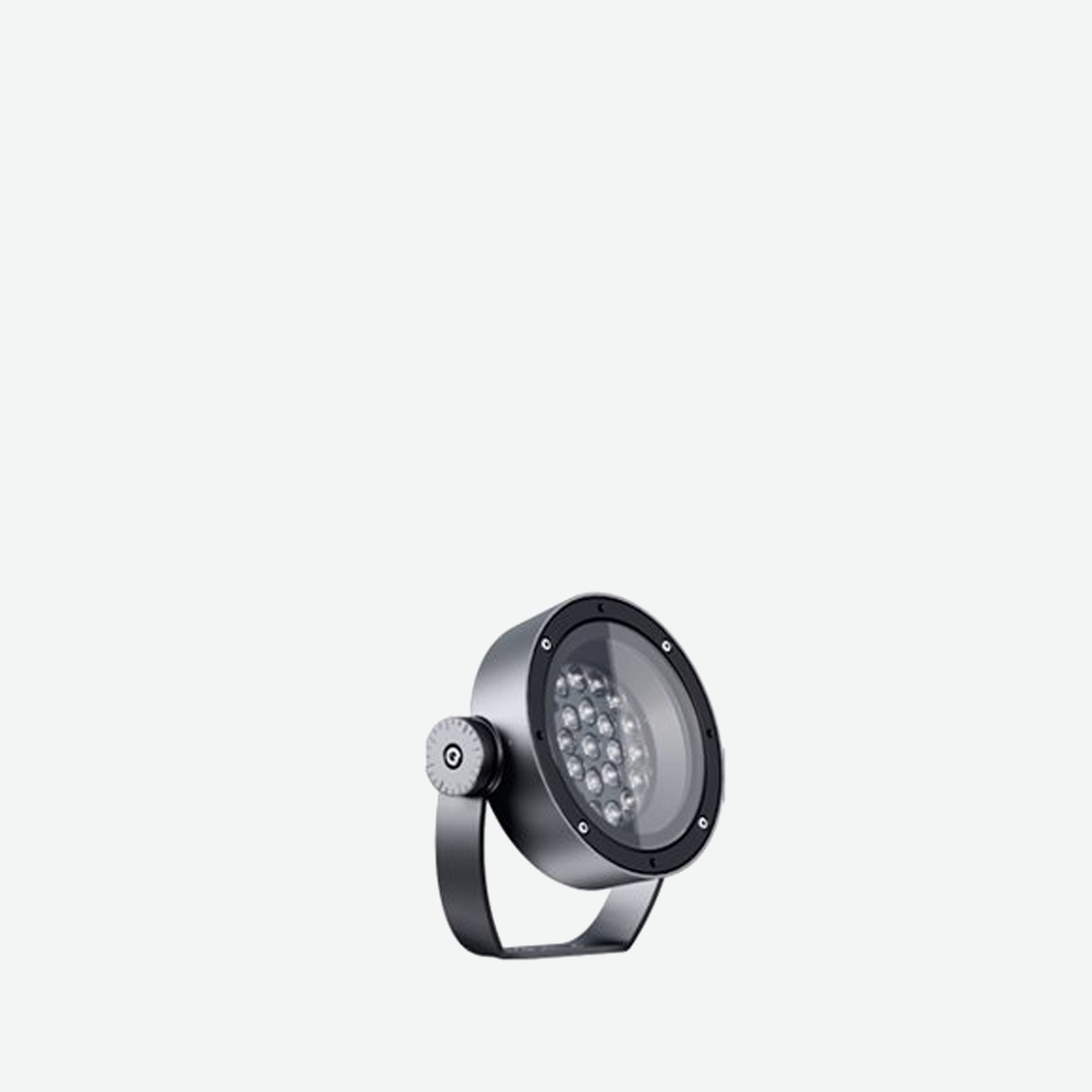

Agorà ø204mm slim
Overview
- Floodlight designed to use LED lamps.
- Floor, ceiling or wall-mounted. Wall-mounted with either a bracket or handle (special bracket) and pole-mounted with an arm or flange.

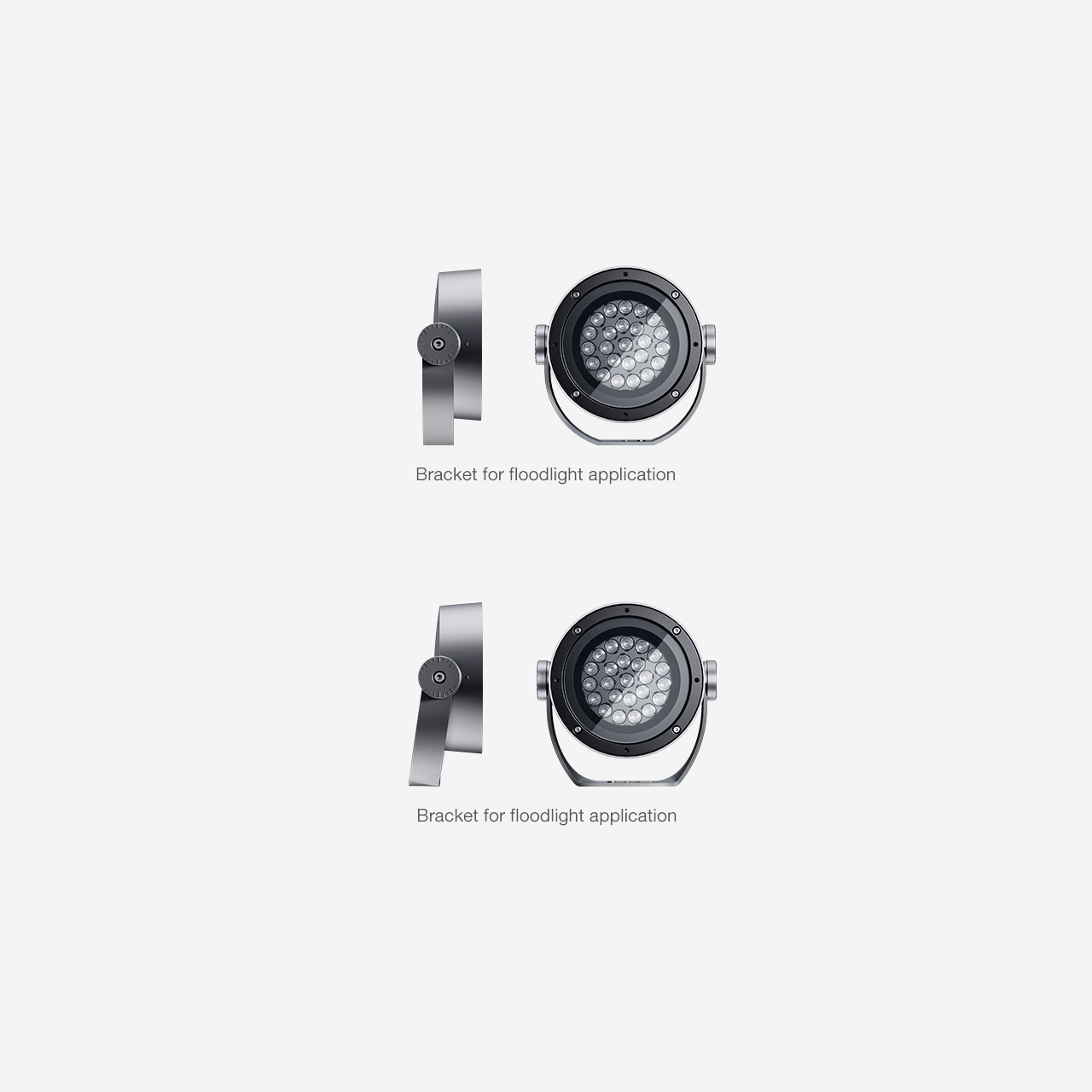

- Consists of a die-cast aluminium optical assembly and a clear tempered sodium-calcium safety glass cover. Bracket for installation as a spotlight and bracket for handle application to be ordered separately.
- The optical assembly can be adjusted on a horizontal plane (-50°/+90°).
- Graduated scale and mechanical locking device for precision aiming.
- A2 stainless steel cable gland.
- DALI power supply unit to be ordered separately together with the accessory box X653 that guarantees an IP66 rating.
- IP66 / IK08 (IK10 with protective grille).
-
Optibeam Lens and Optibeam Reflector optics.
- External optical (cylindrical screen and 45° cylindrical screen) and safety accessories (protective grille).
- Internal accessories (diffusing glass covers, lamellar louvers and refractor for elliptical distribution).
- Insulation class I.
- All external screws used are made of A2 stainless steel.
- In the case of installations on insulated supports (e.g. fibreglass poles), please contact us to request a customised product equipped with an accessory that protects the device from possible failure due to electrostatic charges.
Protection Ratings
-
Class I -
IP66
Mechanical Resistance
-
Protected against 1 J shocks
Certifications & Approvals
-
CE -
ENEC-03 -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Graduated scale and mechanical aiming lock -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
F Mark
