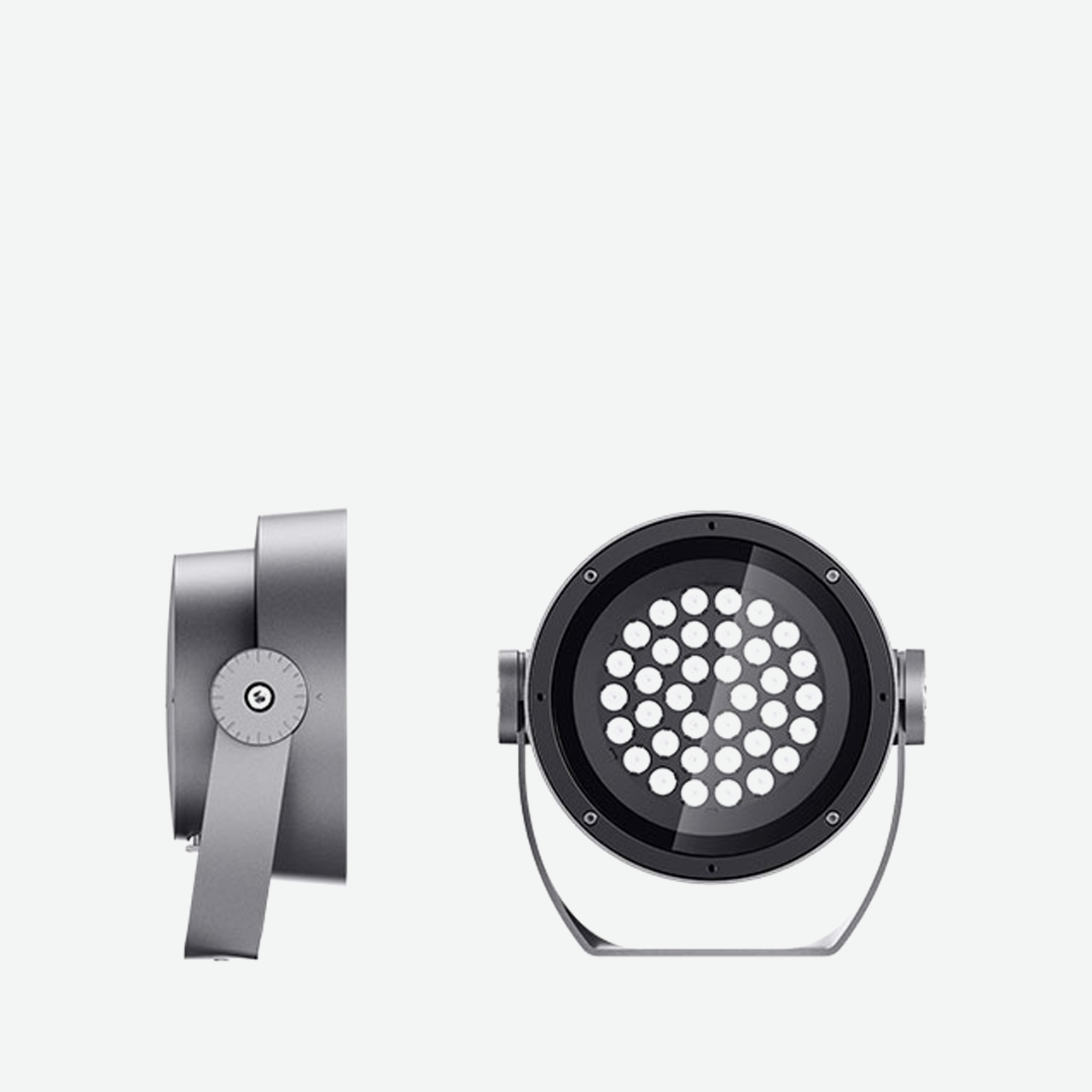

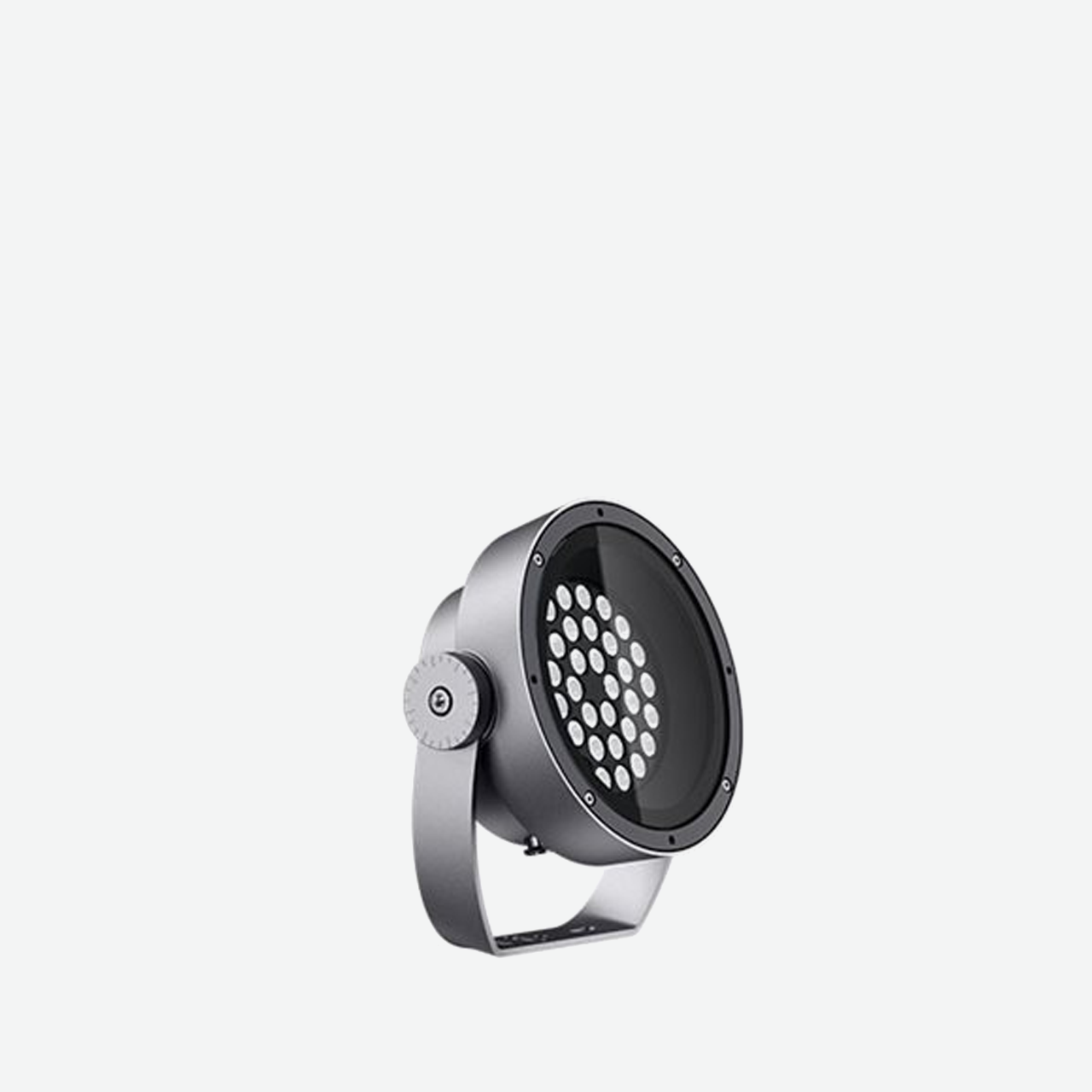

Agorà ø254mm compact
Overview
- Floodlight designed to use LED lamps.
- Floor, ceiling or wall-mounted. Wall-mounted with either a bracket or handle (special bracket) and pole-mounted with an arm or flange.
- Consists of a die-cast aluminium optical assembly and a clear tempered sodium-calcium safety glass cover. Bracket for installation as a spotlight and bracket for handle application to be ordered separately.
- The optical assembly can be adjusted on a horizontal plane (-50°/+90°).
- Graduated scale and mechanical locking device for positioning.
- 2PG.
- DALI driver included and compatible with Telemanagement systems.
- IP66 / IK08 (IK10 with protective grille).
- Opti Beam Lens and Opti Beam Reflector optics.
- External optical (cylindrical screen and 45° cylindrical screen) and safety accessories (protective grille).
- Internal accessories (diffusing glass covers, lamellar louvers and refractor for elliptical distribution).
- All external screws used are made of A2 stainless steel.
- Insulation class II.
- In the case of installations on insulated supports (e.g. fibreglass pole), the use of accessory X899 is mandatory (or strongly recommended) in order to protect the luminaire from possible failures due to electrostatic charges.
Protection Ratings
-
Class II -
IP66
Mechanical Resistance
-
Protected against 5 J shocks
Certifications & Approvals
-
CE -
ENEC-03 -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Compatibility with DALI protocol -
Spike protection -
Telemanagement -
F Mark
