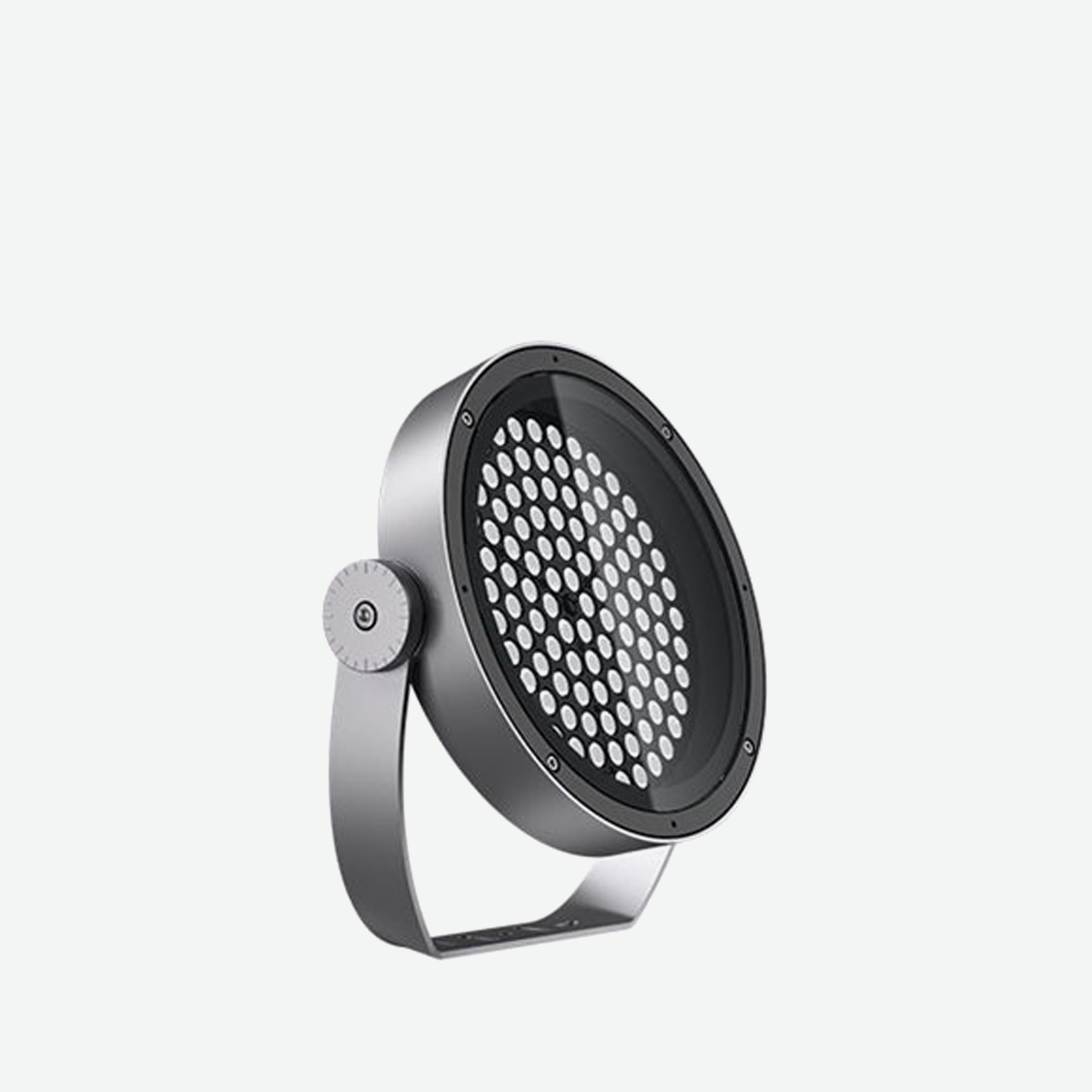

Agorà ø368mm slim
Overview
- Floodlight luminaire intended for use with LED light sources.
- Installation on floor, ceilings and walls with bracket and walls with handle.

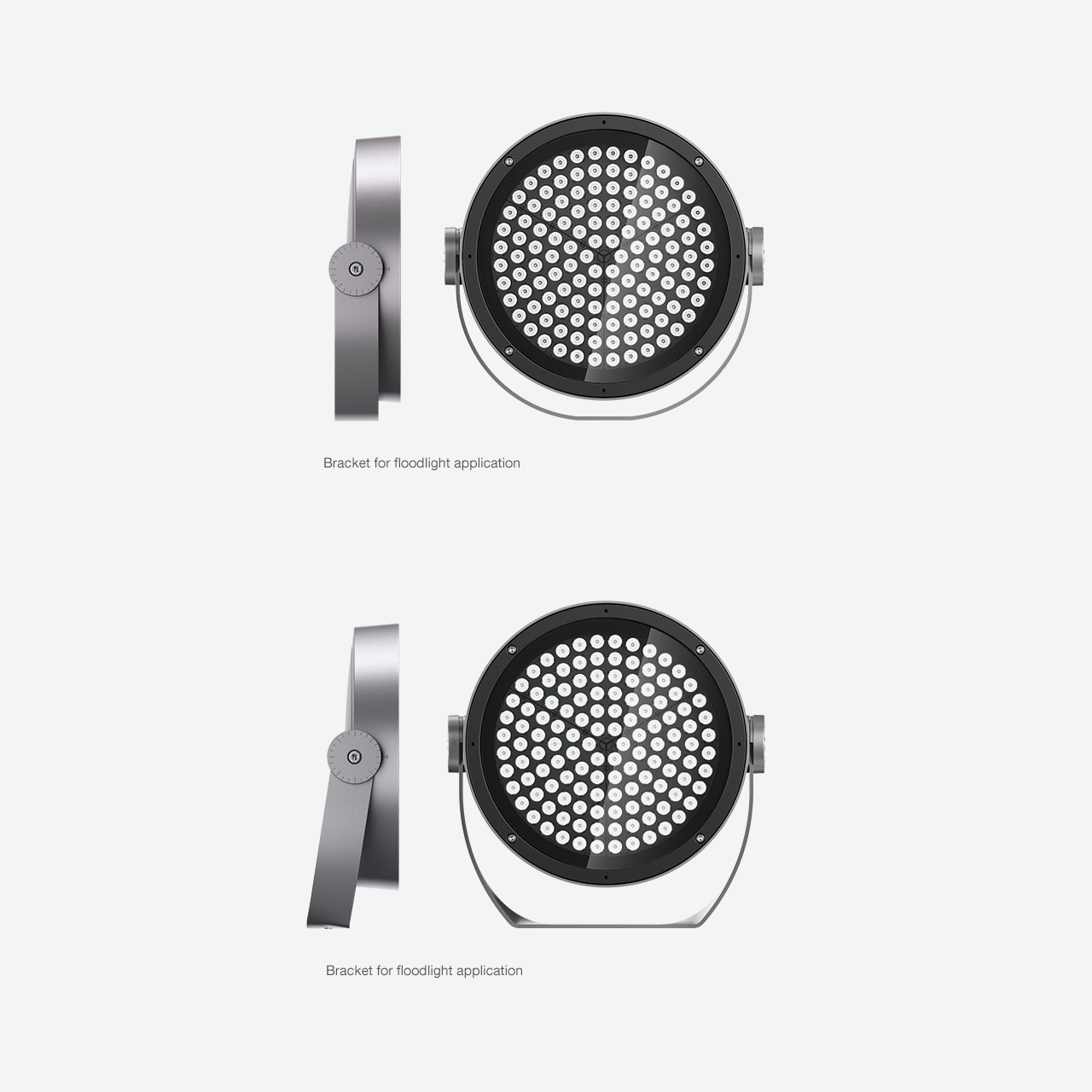

- Comprising an optical compartment in die-cast aluminium and transparent tempered sodium-calcium safety glass. Bracket for application on floodlight and bracket for application on handle to be ordered separately.
- Adjustable optical compartment in the horizontal plane (-50°/+90°).
- Graduated scale and mechanical aiming lock.
- A2 stainless steel cable gland.
- DALI power supply to be ordered separately. Use together with accessory box (X653) to achieve IP66.
- Mini floodlights in series.
- IP66 / IK08 (IK10 with protective grille).
- Opti Beam Lens and Opti Beam Refractor.
- External optical accessories (cylindrical screen and 45 ° cylindrical screen) and safety (protective grid).
- Internal accessories (diffuser glass, lamellar louvre and refractor for elliptical distribution).
- All external screws used are in A2 stainless steel.
- Insulation class II.
- In the case of installations on insulated supports (e.g. fibreglass poles), please contact us to request a customised product equipped with an accessory that protects the device from possible failure due to electrostatic charges.
Protection Ratings
-
Class I -
IP66 -
IP67
Mechanical Resistance
-
Protected against 5 J shocks
Certifications & Approvals
-
CE -
ENEC-03 -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Graduated scale and mechanical aiming lock -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
F Mark
