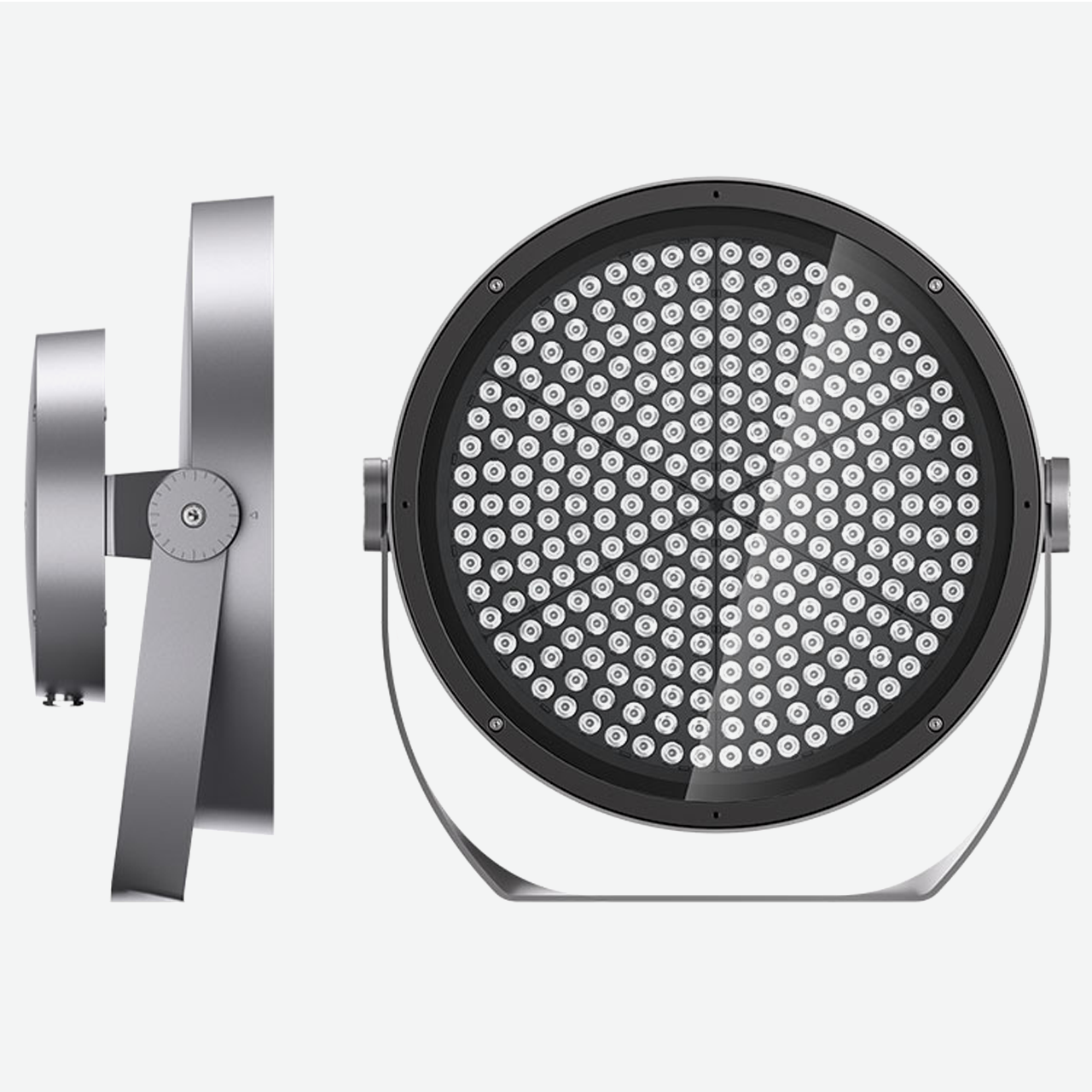

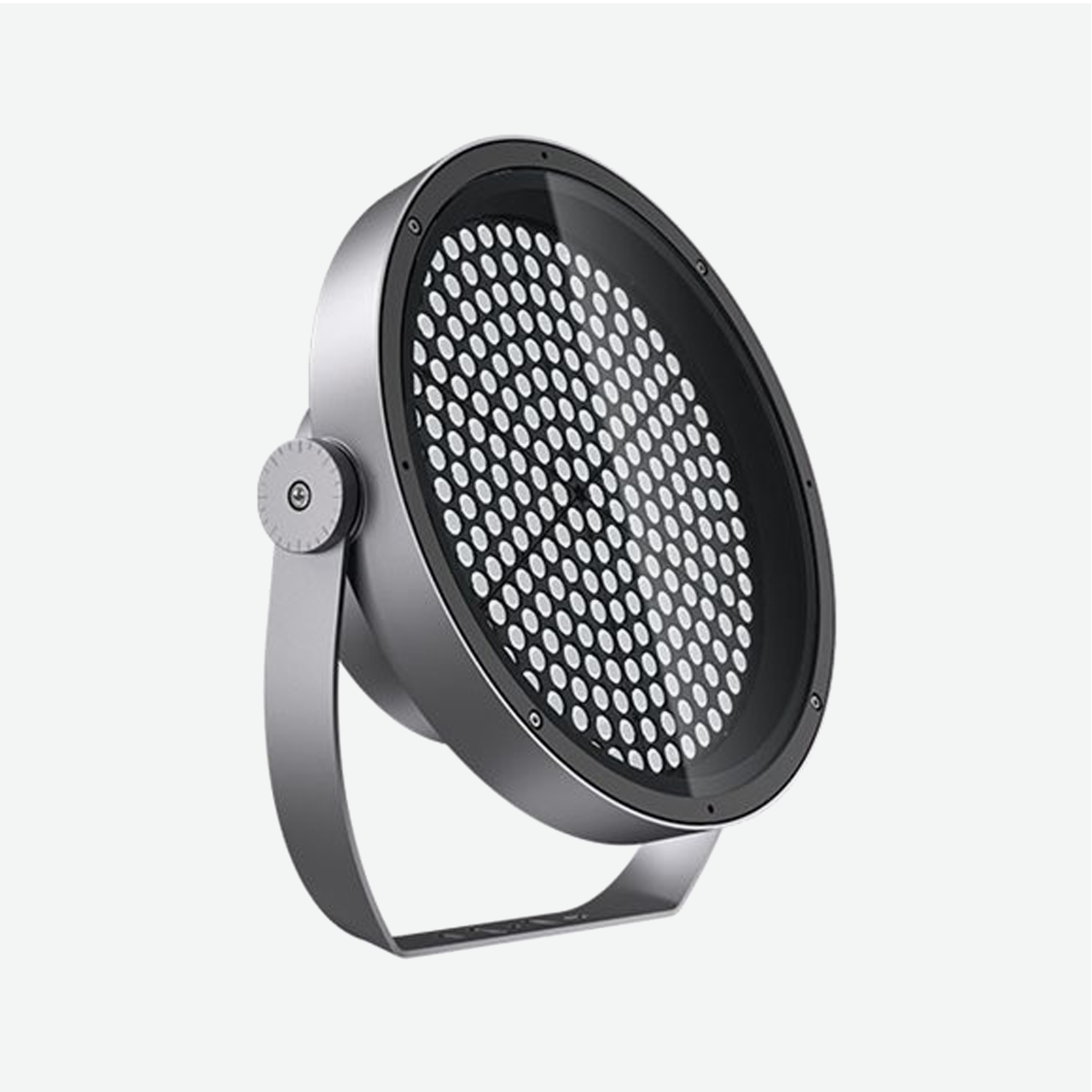

Agorà ø516mm compact
Overview
- Floodlight luminaire intended for use with LED light sources.
- Floor, ceiling and wall-mount installation.
- Comprising an optical compartment and bracket in die-cast aluminium and transparent tempered sodium-calcium safety glass.
- Adjustable optical compartment in the horizontal plane (-50°/+90°).
- Graduated scale and mechanical aiming lock.
- Dual PG.
- Double cable gland M24x1.5.
- Electronic DALI power supply (IP67 / IP68) supplied, compatible with Telemanagement systems.
- IP66 / IK08 (IK10 with protective grille) Opti Beam Lens and Opti Beam Reflector optics.
- White version supplied with DALI electronic ballast, compatible with telecommunication systems.
- External optical accessories (cylindrical screen and 45 ° cylindrical screen) and safety (protective grid).
- Internal accessories (diffuser glass, lamellar louvre and refractor for elliptical distribution).
- TW and RGBW versions available.
- All external screws used are in A2 stainless steel.
- Insulation class II.
- In the case of installations on insulated supports (e.g. fibreglass pole), the use of accessory X899 is mandatory (or strongly recommended) in order to protect the luminaire from possible failures due to electrostatic charges.
Protection Ratings
-
Class II -
Class III -
IP66 -
IP67
Mechanical Resistance
-
Protected against 5 J shocks
Certifications & Approvals
-
CE -
ENEC-03 -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Graduated scale and mechanical aiming lock -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
RGB with Real White versions -
F Mark -
Warm dimming
