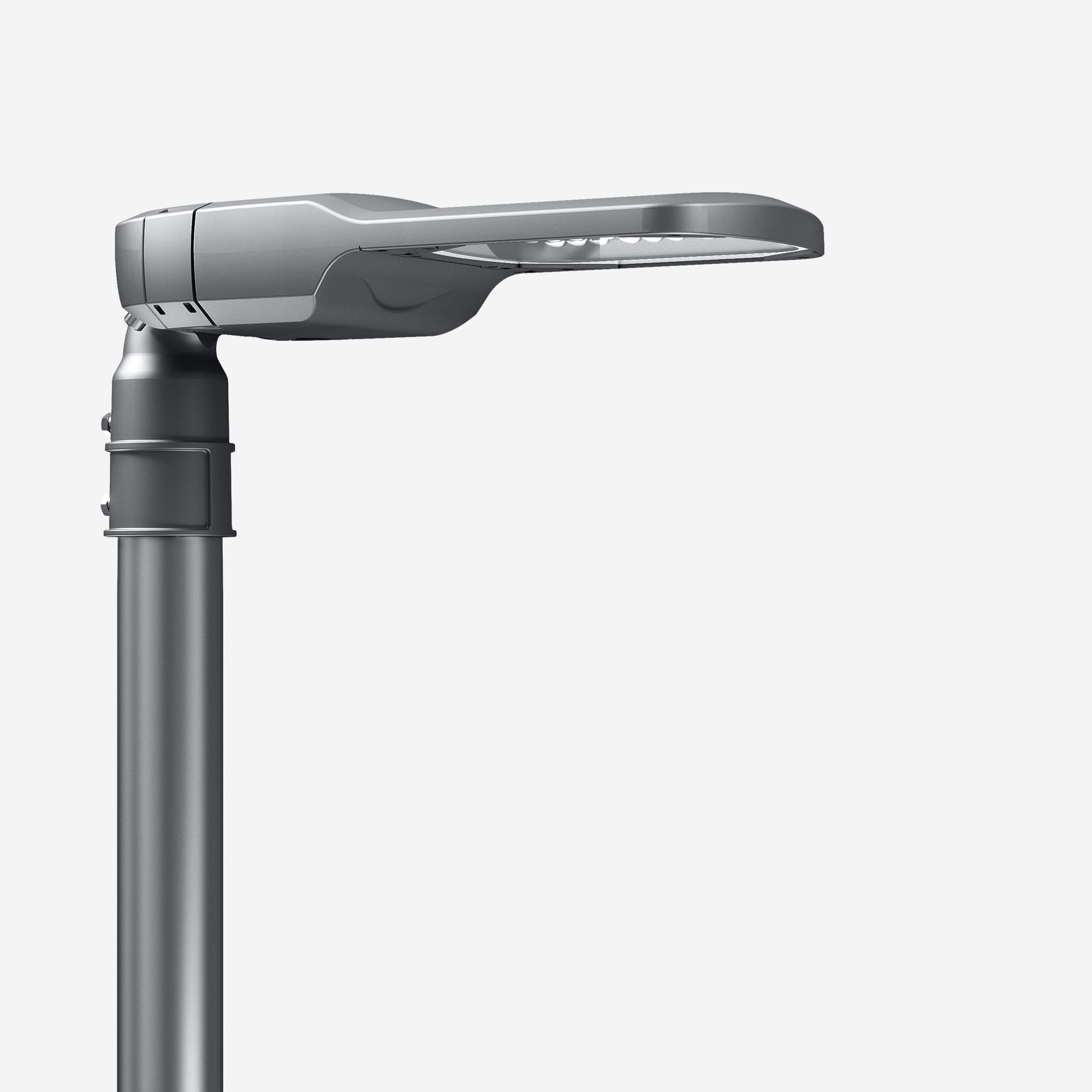

Billboard pole-top
Overview
- Pole-mounted urban lighting system for the use of LED light sources.
- Installation on pole-head, side-arm or whip-arm poles.
- Optical compartment made of die-cast aluminium alloy with steel springs and 4mm thick tempered glass.
- No upward scattering.
- Adjustable optical compartment (tilt angle ±15°).
- Three optics available: STM, STW and ASF.

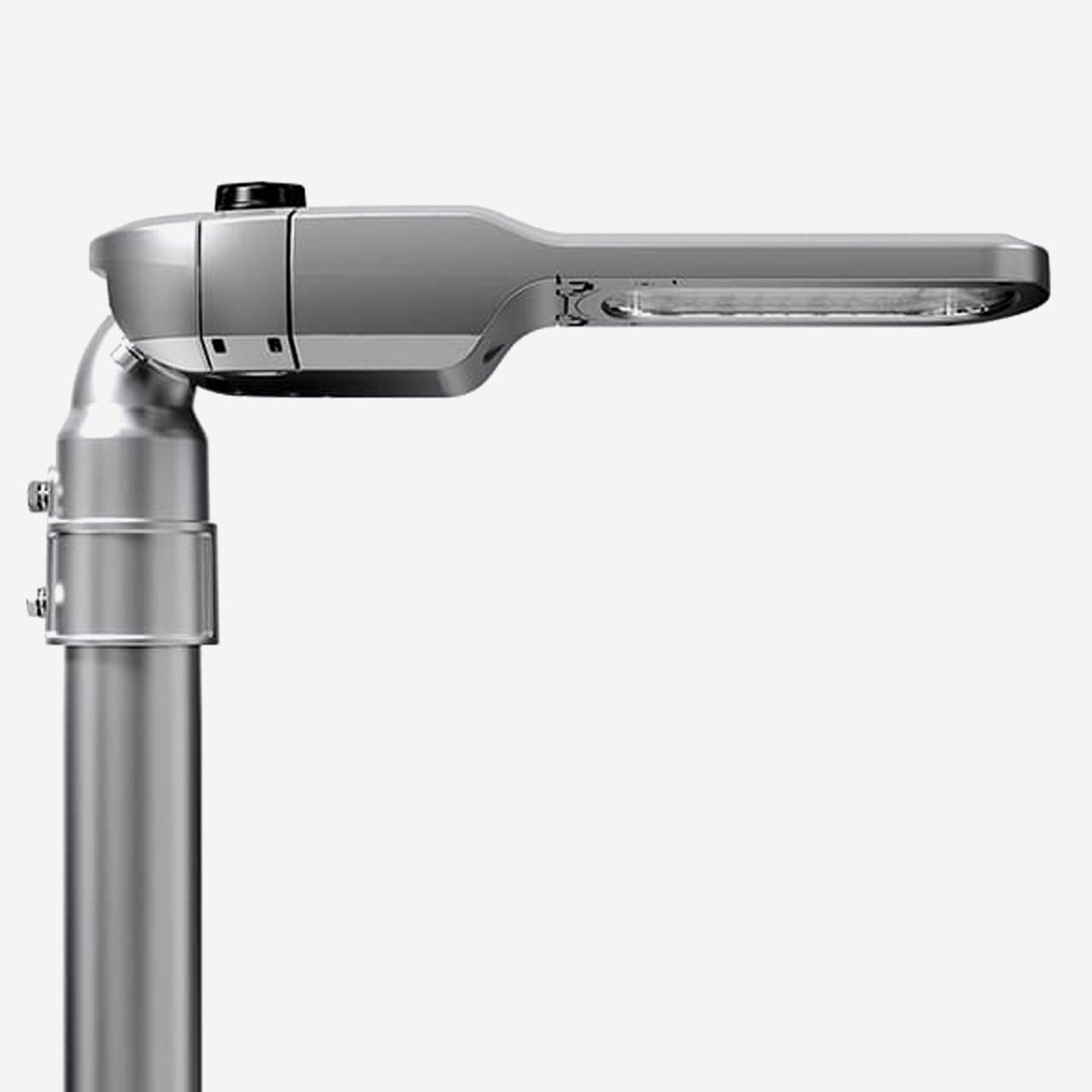

- The product is available with Midnight protocol or with Zhaga Socket 4 Pin (up only).
- Supplied with an outgoing cable L=500mm.
- Overvoltage protection 10kV (common mode) and 10kV (differential mode).
- The connection for pole installation is separate and can be purchased as an accessory separately. - Supplied with decompression valve.
- The product is equipped with a hinge that allows opening without tools.
- IP66, IK10.
- Class II.
- In the case of installations on insulated supports (e.g. fibreglass poles), please contact us to request a customised product equipped with an accessory that protects the device from possible failure due to electrostatic charges.
- Dark Sky Approved: the IDA’s Fixture Seal of Approval programme certifies outdoor lighting fixtures as being Dark Sky friendly, so in compliance with the following:
- Maximum Correlated Color Temperature of 3000K.
- Up-light allowance limited to 0.5% of total output, or 50 lumens, with no more than10 lumens in the 90-100 degree UL zone.
- Luminaires are required to have fixed mounting to ensure they are installed as tested; there can be up to + or - 10° adjustment for levelling if needed.
- Luminaires must have dimming capability to 10% full rating.
Protection Ratings
-
Class II -
IP66
Mechanical Resistance
-
Protected against 20 J shocks
Certifications & Approvals
-
CE -
ENEC-03 -
UK Conformity Assessed -
DARKSKY
