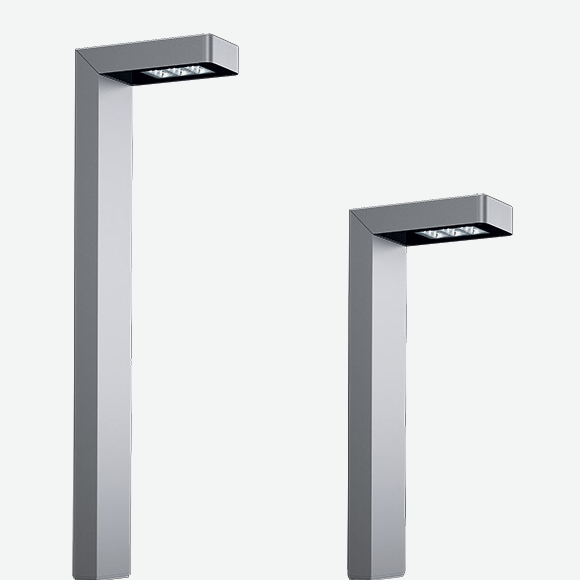

Lander bollard

Direct light luminaire designed for use with LED light sources.
Bollard versions available (for horizontal and vertical lighting) as well as wall versions.
Comprises body and optical compartment.
Body in extruded aluminium with steel ground/wall mounting base strip;
The body of bollard versions houses two stainless steel rods secured to the base strip ensuring high resistance to impacts and vandalism for the product
Optical compartment and glass holder frame in die-cast aluminium. clear sodium-calcium tempered sealing glass, 5 mm thick with black screen-printing Comfort prismatic glass with black screen printing for the wall version.
Body and optical compartment undergo multi-step pre-treatment (degreasing, fluoro-zirconium, sealing). The subsequent painting stage involves primer and liquid acrylic paint to ensure high resistance to atmospheric agents and UV rays.
Optical compartment complete with electronic power supply and output power supply cable.
Versions are available with on/off power supply and DALI.
Bollard versions complete with IP68 gel-type connection box pre-set for through-passing cables
Asymmetrical Longitudinal (AL) and Crossways (AT) optics with Opti-smart reflectors in super-pure aluminium coated with silvery deposits ensuring high efficiency and uniform light distribution.
High uniformity versions are available - HU (High Uniformity).
Replaceable LED and power supplies.
Bollard versions for horizontal lighting are "full cut-off" with high visual comfort for lighting paths and pavements. The vertical lighting version has asymmetrical optics suitable for vertical illumination of façades and walls.
Comfort glass for direct lighting.
Overvoltage protection: 4kV in Common Mode (CM), 2kV in Differential Mode (DM).
The SPD accessory (JAL6) increases overvoltage protection to 10kV/10kV (CM/DM).
Contact temperature <45°.
Application ambient temperature: -30°C +50°C
All screws used are in A2 stainless steel.
Dark Sky Approved: the IDA’s Fixture Seal of Approval programme certifies outdoor lighting fixtures as being Dark Sky friendly, so in compliance with the following:
- Maximum Correlated Color Temperature of 3000K.
- Up-light allowance limited to 0.5% of total output, or 50 lumens, with no more than10 lumens in the 90-100 degree UL zone.
- Luminaires are required to have fixed mounting to ensure they are installed as tested; there can be up to + or - 10° adjustment for levelling if needed.
- Luminaires must have dimming capability to 10% full rating.
