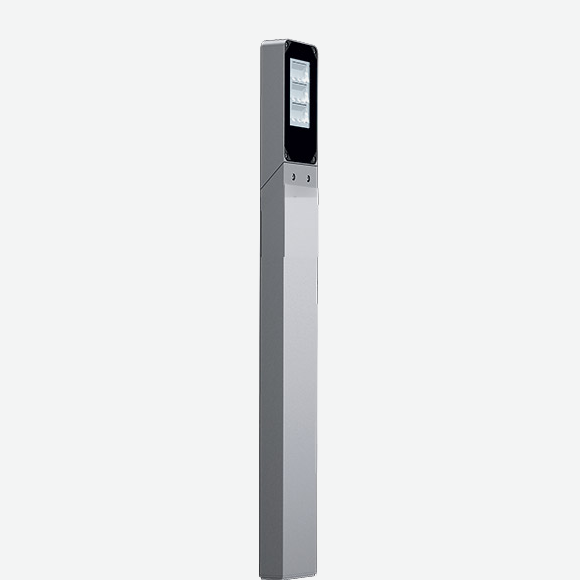

Lander bollard vertical light
Overview
- Direct light luminaire designed for use with LED light sources.
- Comprises body and optical compartment.
- Body in extruded aluminium with steel ground/wall mounting base strip;
- The body of bollard versions houses two stainless steel rods secured to the base strip ensuring high resistance to impacts and vandalism for the product
- Optical compartment and glass holder frame in die-cast aluminium. clear sodium-calcium tempered.
- Sealing glass, 5 mm thick with black screen-printing.
- Body and optical compartment undergo multi-step pre-treatment (degreasing, fluoro-zirconium, sealing). The subsequent painting stage involves primer and liquid acrylic paint to ensure high resistance to atmospheric agents and UV rays.
- Optical compartment complete with electronic power supply and output power supply cable.
- Versions are available with on/off power supply and DALI.
- Bollard versions complete with IP68 gel-type connection box pre-set for through-passing cables
- Asymmetrical Longitudinal (AL) and Crossways (AT) optics with Opti-smart reflectors in super-pure aluminium coated with silvery deposits ensuring high efficiency and uniform light distribution.
- Replaceable LED and power supplies.
- The vertical lighting version has asymmetrical optics suitable for vertical illumination of façades and walls.
- Comfort glass for direct lighting.
- Overvoltage protection: 4kV in Common Mode (CM), 2kV in Differential Mode (DM).
- The SPD accessory (JAL6) increases overvoltage protection to 10kV/10kV (CM/DM).
- Contact temperature <45°.
- Application ambient temperature: -30°C +50°C
- All screws used are in A2 stainless steel.
Protection Ratings
-
Class II -
IP66
Mechanical Resistance
-
Protected against 10 J shocks
Certifications & Approvals
-
CCC Pending -
CCC S&E -
CE -
ENEC-03 -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Opti Smart -
No upward emission of the light flow -
Suitable for extreme conditions -
Pass-through wiring -
F Mark
