Outdoor / Pole & wall mounted systems / Lander / wall

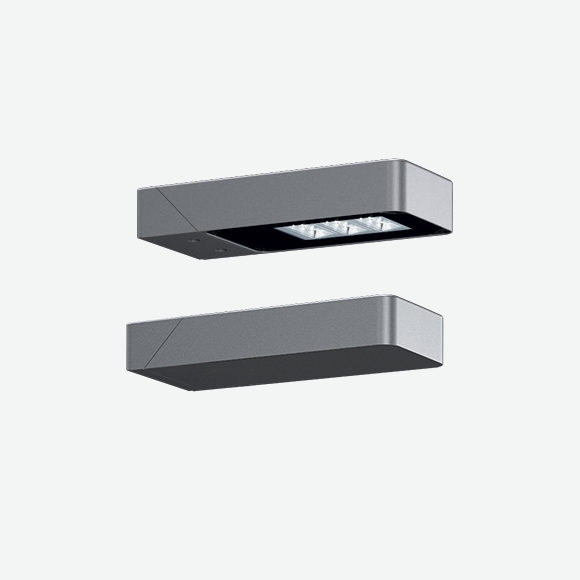

Lander wall

Direct light luminaire designed for use with LED light sources.
Comprises body and optical compartment.
Body in extruded aluminium with steel ground/wall mounting base strip.
Optical compartment and glass holder frame in die-cast aluminium. clear sodium-calcium tempered
Sealing glass, 5 mm thick with black screen-printing Comfort prismatic glass with black screen printing for the wall version.
Body and optical compartment undergo multi-step pre-treatment (degreasing, fluoro-zirconium, sealing). The subsequent painting stage involves primer and liquid acrylic paint to ensure high resistance to atmospheric agents and UV rays.
Optical compartment complete with electronic power supply and output power supply cable.
Asymmetrical Longitudinal (AL) and Crossways (AT) optics with Opti-smart reflectors in super-pure aluminium coated with silvery deposits ensuring high efficiency and uniform light distribution.
Replaceable LED and power supplies.
Wall versions with transparent glass for direct and indirect high performance lighting and prismatic comfort glass for direct lighting.
Overvoltage protection: 4kV in Common Mode (CM), 2kV in Differential Mode (DM).
The SPD accessory (JAL6) increases overvoltage protection to 10kV/10kV (CM/DM).
Contact temperature <45°.
Application ambient temperature: -30°C +50°C
All screws used are in A2 stainless steel.
Dark Sky Approved: the IDA’s Fixture Seal of Approval programme certifies outdoor lighting fixtures as being Dark Sky friendly, so in compliance with the following:
- Maximum Correlated Color Temperature of 3000K.
- Up-light allowance limited to 0.5% of total output, or 50 lumens, with no more than10 lumens in the 90-100 degree UL zone.
- Luminaires are required to have fixed mounting to ensure they are installed as tested; there can be up to + or - 10° adjustment for levelling if needed.
- Luminaires must have dimming capability to 10% full rating.
- In order to be compliant with the requirements of DarkSky Approved programs, the Lander Wall version must be installed with the light emission downward.

Protection Ratings

Class II
IP66

Mechanical Resistance

Protected against 10 J shocks

Certifications & Approvals

BVB Byggvarube- dömningen
CCC Pending
CCC S&E
CE
ENEC-03
UK Conformity Assessed
BIS
QCERT

Key Features

Opti Smart
No upward emission of the light flow
Suitable for extreme conditions
Pass-through wiring
F Mark
