Laser Blade High Contrast
Overview

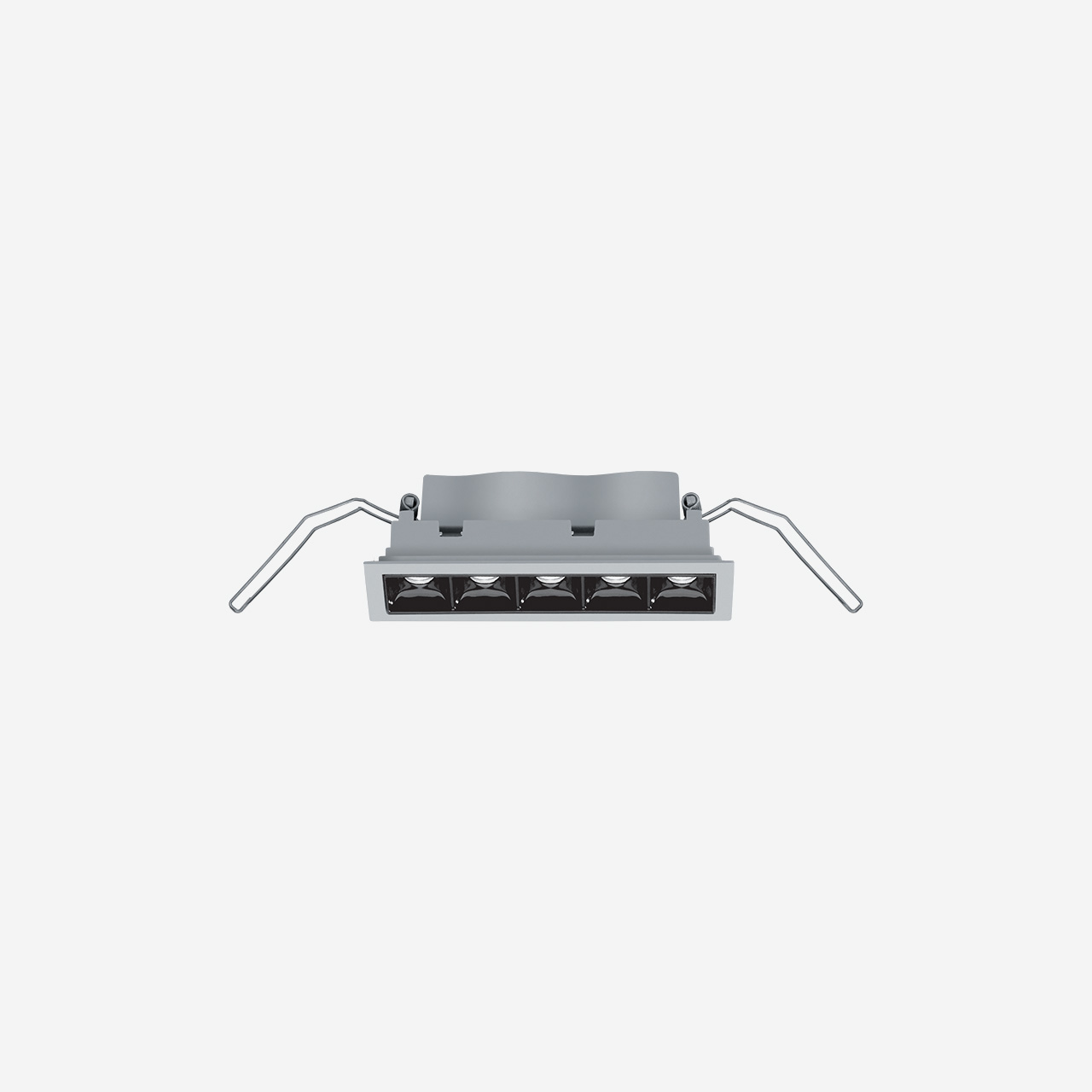

- Flush mount installation on false ceilings of thickness 12.5 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using torsion springs.
- Main body with radiant surface made of die-cast aluminium.
- High-definition optics made of metallised thermoplastic material, integrated in the innovative black antiglare screen that defi nes emission with luminance control UGR<10.
- Tunable White versions available (2700K ÷ 5700K)
- The special configuration of the optical system delivers a precise circular distribution without punctiform effect.
- High visual comfort.
- Installation without tools.
- The minimum installation space dimensions are listed in the online instruction catalogue.
- IP20.
- IP23 on the visible body of the mount after installation.
Protection Ratings
-
Class I -
Class II -
Class III -
IP20 -
IP23
Certifications & Approvals
-
BIS pending -
BVB Byggvarube- dömningen -
CCC Pending -
CCC S&E -
CE -
ENEC-03 -
ENEC pending -
NOM -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire reduced height -
Opti Beam high-performance reflectors -
Luminaires ideal for interiors with video terminals -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
Tunable White versions -
F Mark
