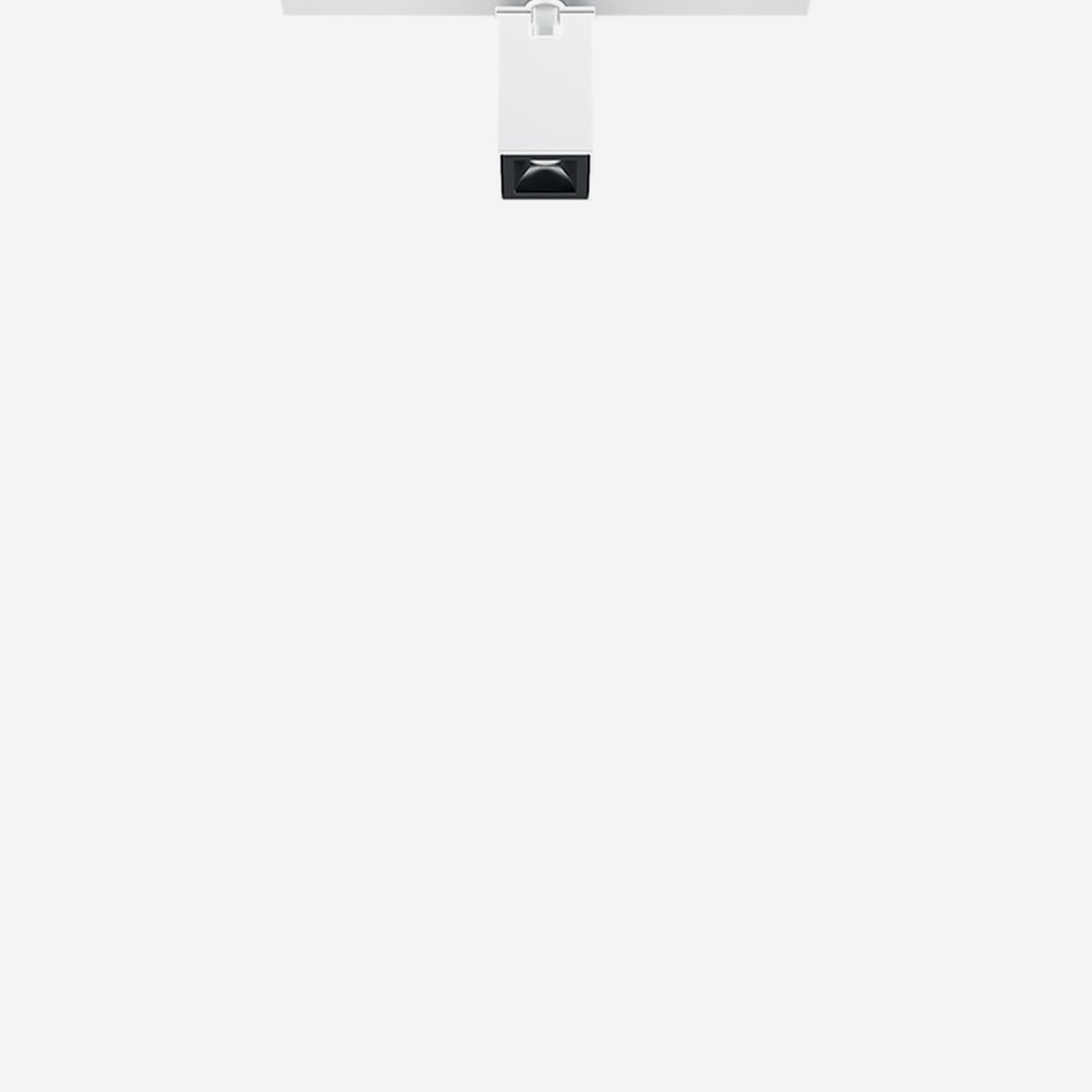

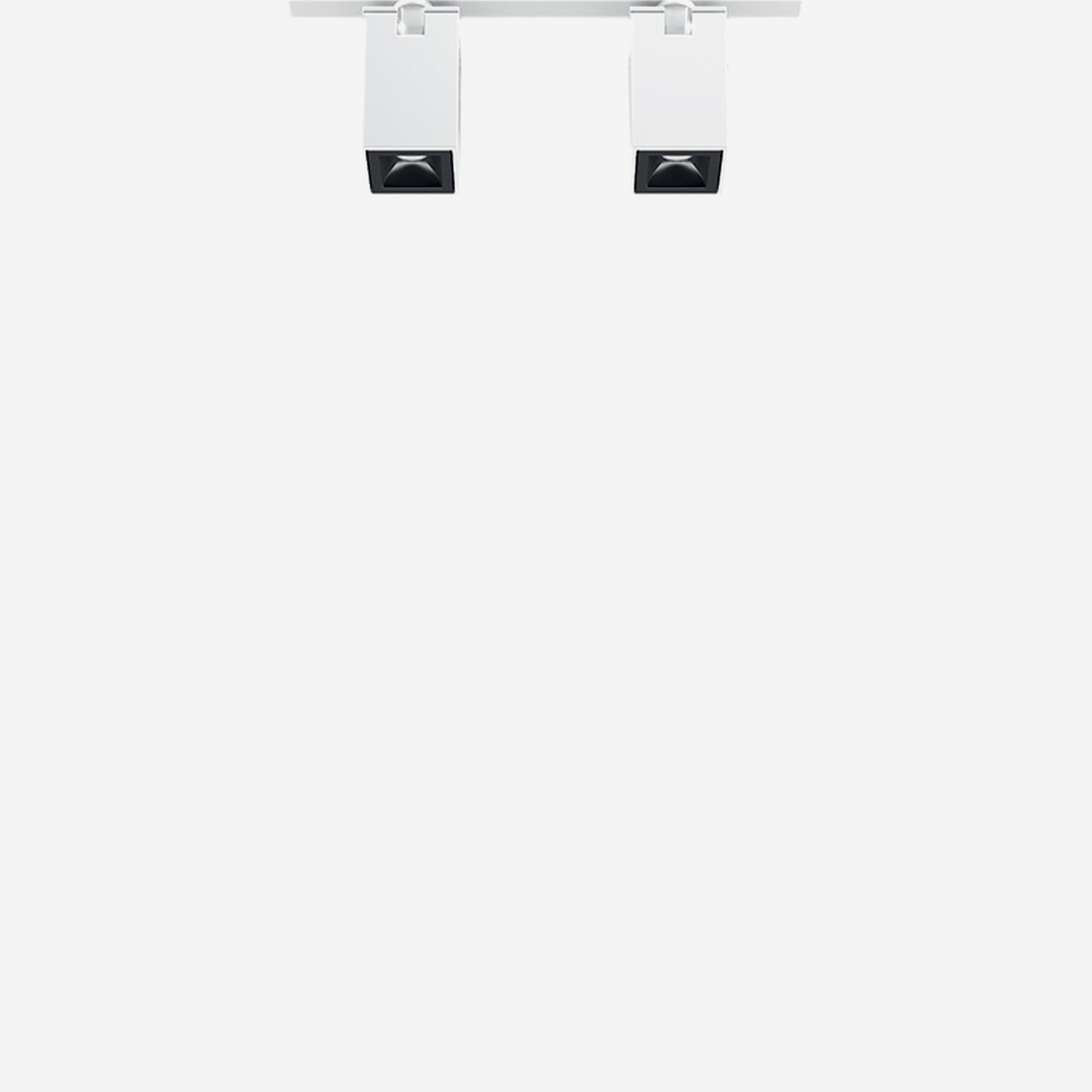

Laser Blade XS High Contrast 1x / 2x for Superrail Casambi
Overview
- Lighting assembly consisting of one or two miniaturised adjustable spotlights with adapter for installation on a Superrail.
- The Casambi integrated technology allows independent control of each light module inserted into the track.
- The device can be controlled via the Casambi app, which enables on/off, dimming, and scene recall functions.
- The app is available on the App Store and Google Play Store.
- It can be integrated into the system's "Mesh" network, allowing the management of multiple devices.
- Moving a device from one track to another does not require reprogramming.
- A Casambi technology sensor is available for direct installation on the track.
- Integrated beacon (iBeacon), which can be activated via the Casambi app, enabling functions such as push notification and indoor navigation-wayfinding.
- Despite the ultracompact size of the product, the patented technology of the optic system guarantees efficient luminous flows and a high level of visual comfort.
- Metallised thermoplastic high definition Opti-Beam reflectors.
- Extruded aluminium spotlight bodies and die-cast zamak technical dissipation and rotation units.
- Spotlight swivel movements: 355° rotation and 90° tilt.
- A rapid tool-free system for connecting the adapter electrically and mechanically to the track.
- Mechanical fastening with adapter on track.
- Integrated DC/DC LED driver in adapter - direct connection on 48V track.
- Track power supply unit to be ordered separately.
Protection Ratings
-
Class III -
IP20
Certifications & Approvals
-
BIS
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
Opti Beam high-performance reflectors -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
Shape & Twist -
F Mark
