Laser Blade XS High Contrast 1x / 2x for Superrail DALI Powerline
Overview

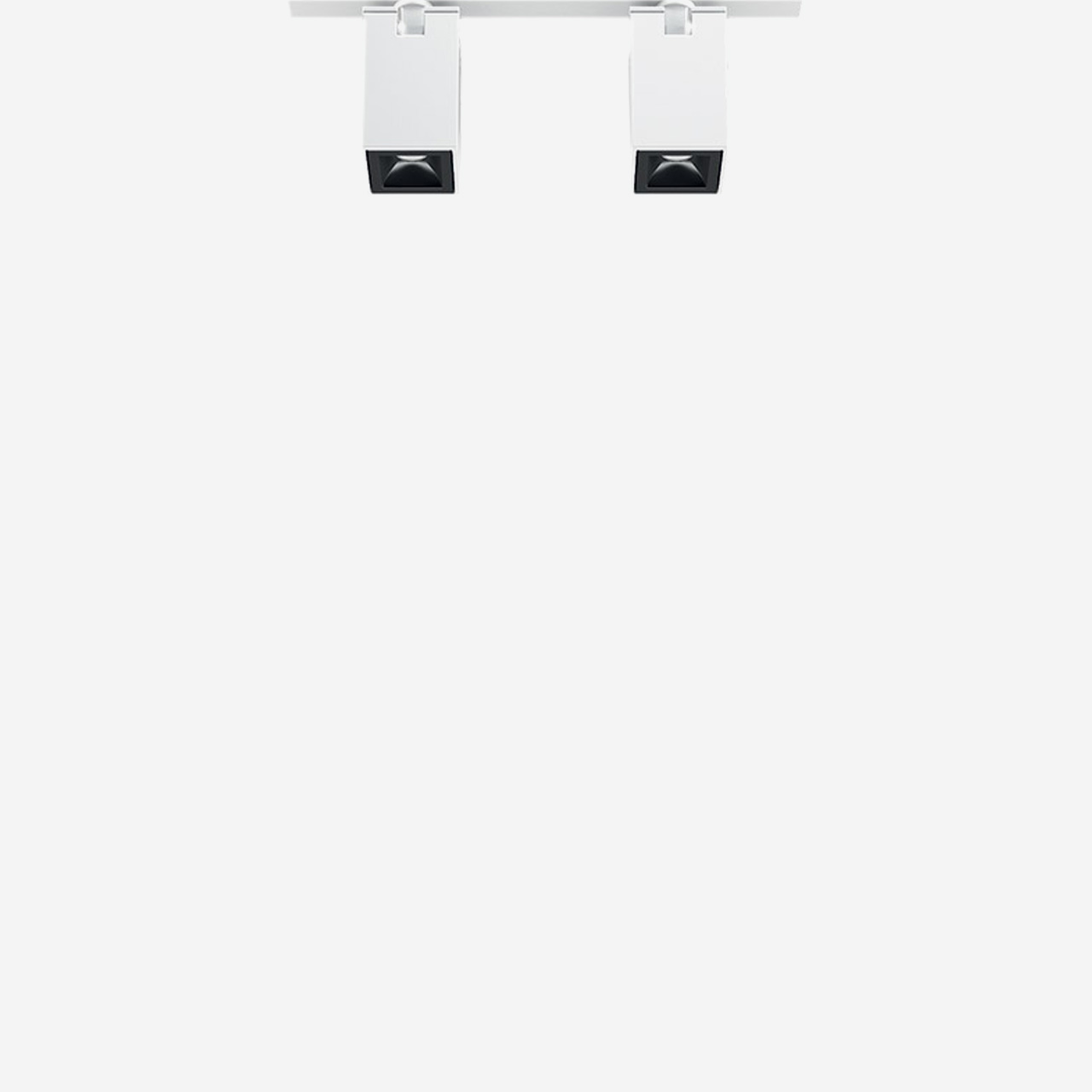

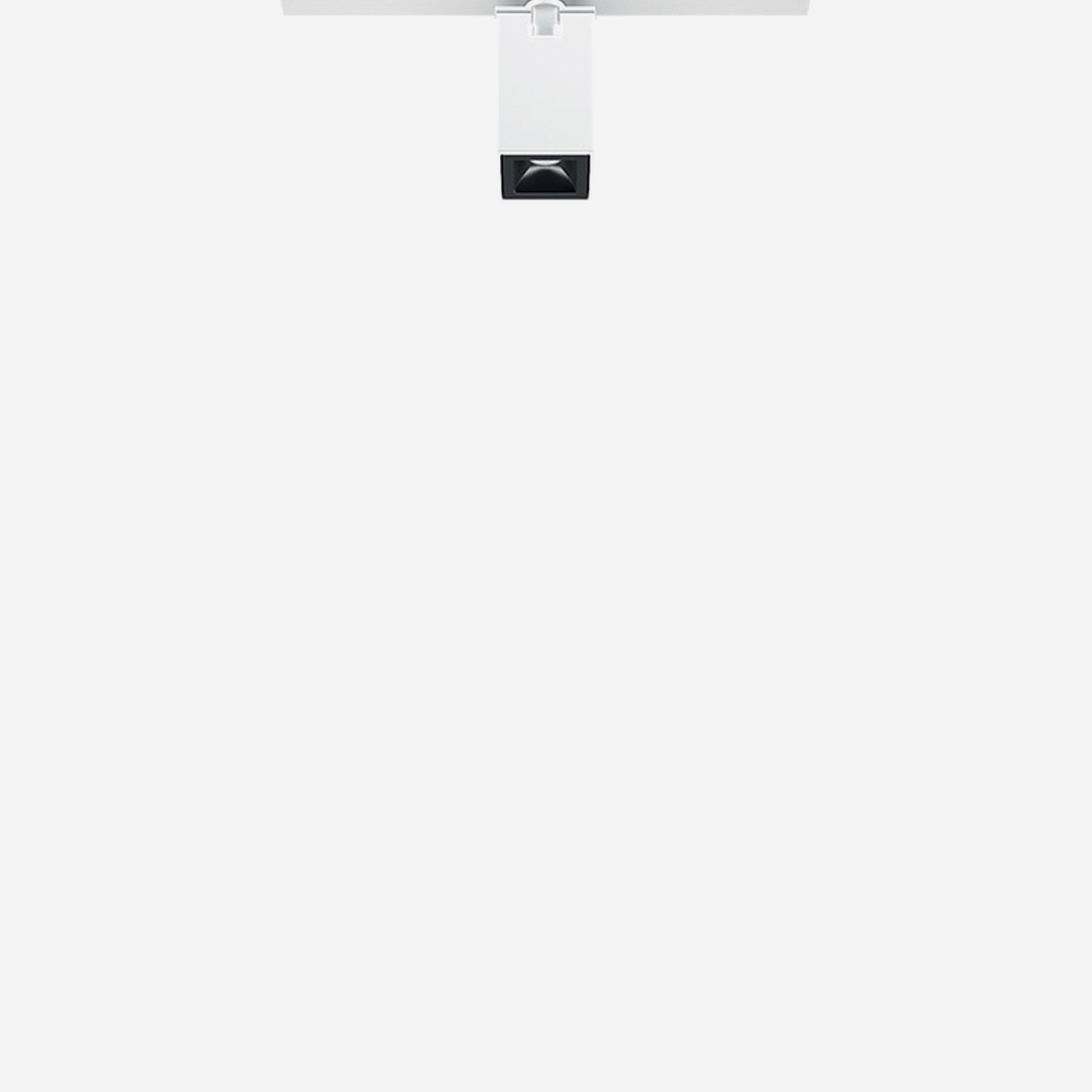

- Lighting assembly consisting of one or two miniaturised adjustable spotlights with adapter for installation on Superrail.
- The thermoplastic adapter includes the DC/DC driver circuit with dimmable DALI functionality.
- The integrated "Powerline" technology allows independent control of each light module inserted into the track.
- Despite the ultracompact size of the product, the patented technology of the optic system guarantees efficient luminous flows and a high level of visual comfort.
- Metallised thermoplastic high definition Opti-Beam reflectors.
- Extruded aluminium spotlight bodies and die-cast zamak technical dissipation and rotation units.
- Spotlight swivel movements: 355° rotation and 90° tilt.
- A rapid tool-free system for connecting the adapter electrically and mechanically to the track.
- Mechanical fastening with adapter on track.
- Integrated DC/DC LED driver in adapter - direct connection on Superrail.
- Track power supply unit to be ordered separately.
Protection Ratings
-
Class III -
IP20
Certifications & Approvals
-
CCC S&E -
CE -
ENEC-03 -
NOM -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
Opti Beam high-performance reflectors -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
Shape & Twist -
F Mark
