Laser Blade XS High Contrast for Filorail
Overview

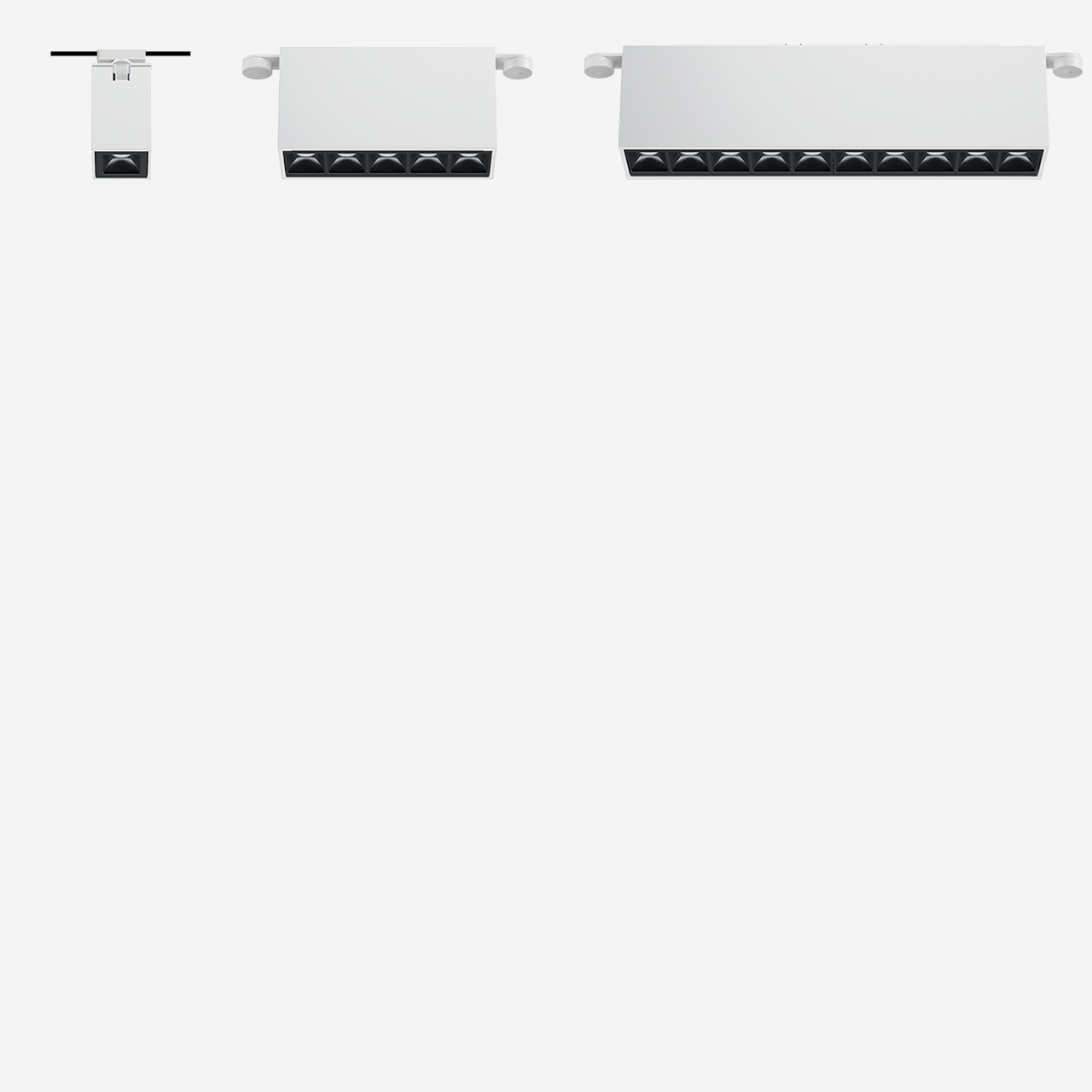

- Lighting assembly consisting of a miniaturised adjustable spotlight complete with adapter for installation on a 48V low voltage Filorail track.
- The adapter is made of a thermoplastic material (LB XS 1x ) that includes the DC/DC driver circuit with a DALI Broadcast (PWM) dimmable function.
- The integrated Powerline (LB XS 5x/10x) technology allows each spotlight on the track (DALI Powerline) to be regulated separately.
- Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient luminous flux and a high level of visual comfort.
- Metallised thermoplastic high definition OptiBeam reflectors.
- Extruded aluminium spotlight body and die-cast zamak technical heat dissipation and rotation units.
- 1x spotlight movement: 355° rotation and 90° tilt.
- A rapid tool-free system for connecting the adapter electrically and mechanically to the track.
- Mechanical fastening with adapter on track.
- Despite the compact size of the product, the patented technology of the optic system guarantees an efficient luminous flux and a high level of controlled glare visual comfort.
- Main body made of extruded aluminium.
Protection Ratings
-
Class III -
IP20
Certifications & Approvals
-
CE -
UK Conformity Assessed -
BIS
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
Opti Beam high-performance reflectors -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
Shape & Twist -
F Mark
