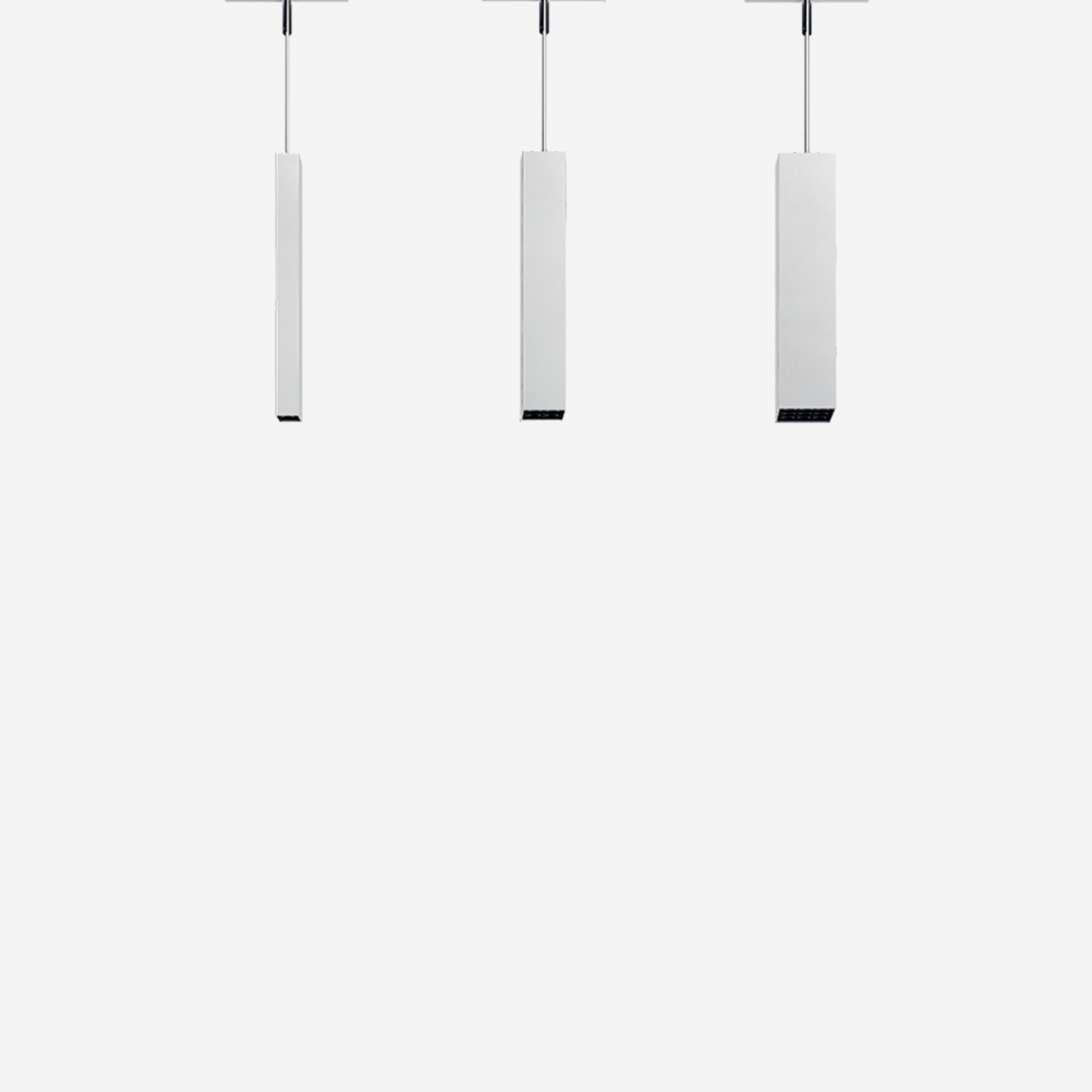

Laser Blade XS High Contrast pendant 1x / 4x / 9x for Superrail DALI Powerline
Overview
- Pendant system with 1, 4 and 9 optic elements and including an adapter for installation on Superrail.
- Ideal for zenithal accent lighting.
- The thermoplastic adapter includes the DC/DC driver circuit with dimmable DALI functionality.
- The integrated "Powerline" technology allows independent control of each light module inserted into the track.
- Fixed optics with metallised thermoplastic high definition Opti-Beam reflectors.
- Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient luminous flux and a high level of visual comfort.
- Extruded aluminium body and die-cast zamak technical dissipation unit.
- PVC power/pendant cable in the same colour as the external finish.
- The cable connection on the pendant body is fitted with a manual adjustment system that facilitates alignment.
- A rapid tool-free system for connecting the adapter electrically and mechanically to the track.
- Product with mechanical lock.
- Mechanical fastening with adapter on track.
- Integrated DC/DC LED driver in adapter - direct connection on Superrail- track power unit to be ordered separately.
- The pendant cable can be adjusted on the pendant body.
Protection Ratings
-
Class III -
IP20
Certifications & Approvals
-
CCC S&E -
CE -
ENEC-03 -
NOM -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
Opti Beam high-performance reflectors -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
Shape & Twist -
F Mark
