Laser Blade XS Wall Washer LGC
Overview

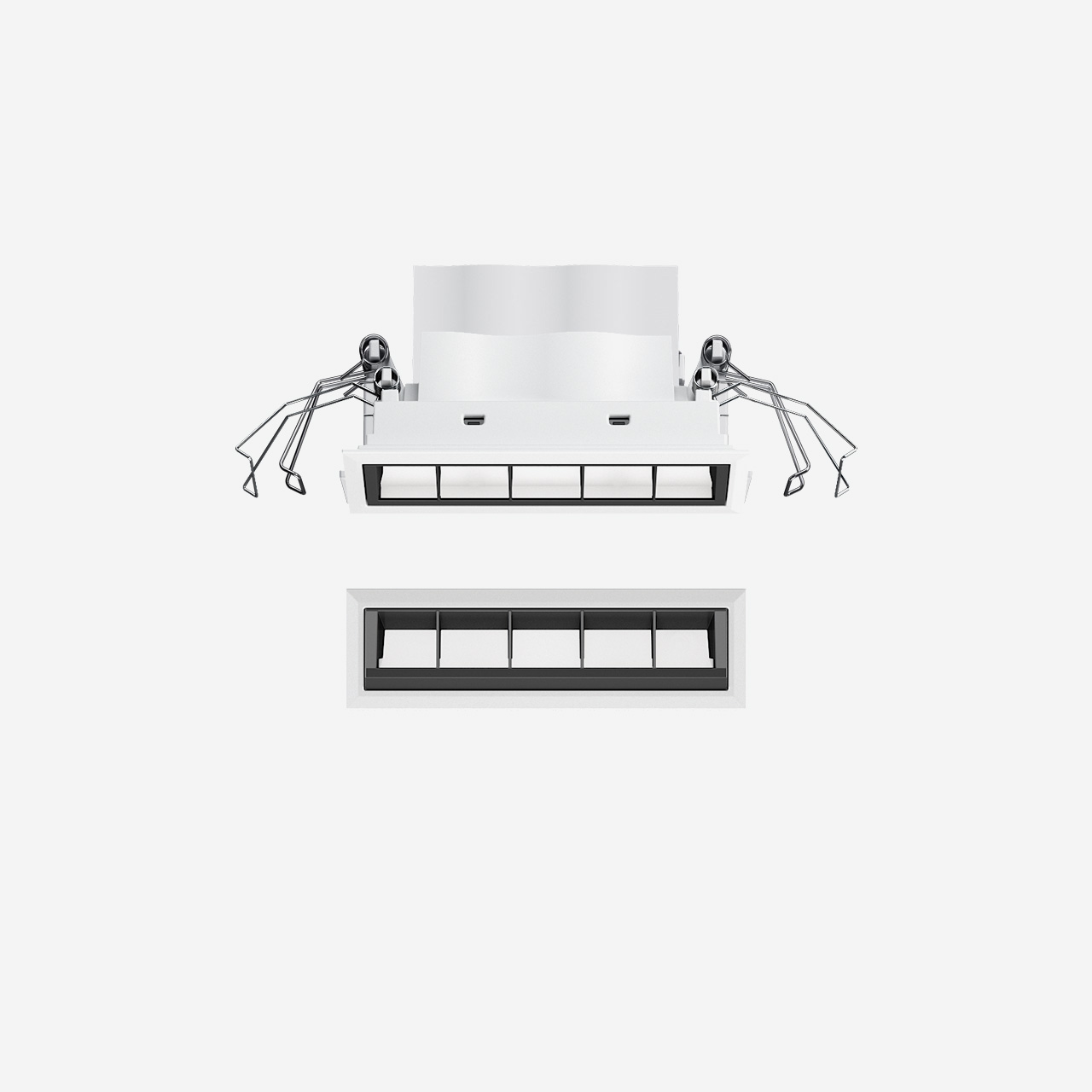

- Flush mount installation on false ceilings of thickness 12.5 - 15 - 20 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using torsion springs.
- Main body with radiant surface made of die-cast aluminium.
- Optical system (patented) with textured rippled screen, specially designed to achieve effective wall washer distribution on the wall.
- Longitudinal Glare Control version designed to considerably reduce longitudinal glare.
- Tunable White versions available (2700K ÷ 5700K).
- Installation without tools.
- The minimum installation space dimensions are listed in the instruction catalogue.
- IP20
- IP43 on the visible body of the mount after installation.
Protection Ratings
-
Class II -
Class III -
IP20 -
IP43
Certifications & Approvals
-
BVB Byggvarube- dömningen -
CCC Pending -
CCC S&E -
CE -
ENEC-03 -
NOM -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire reduced height -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
F Mark
