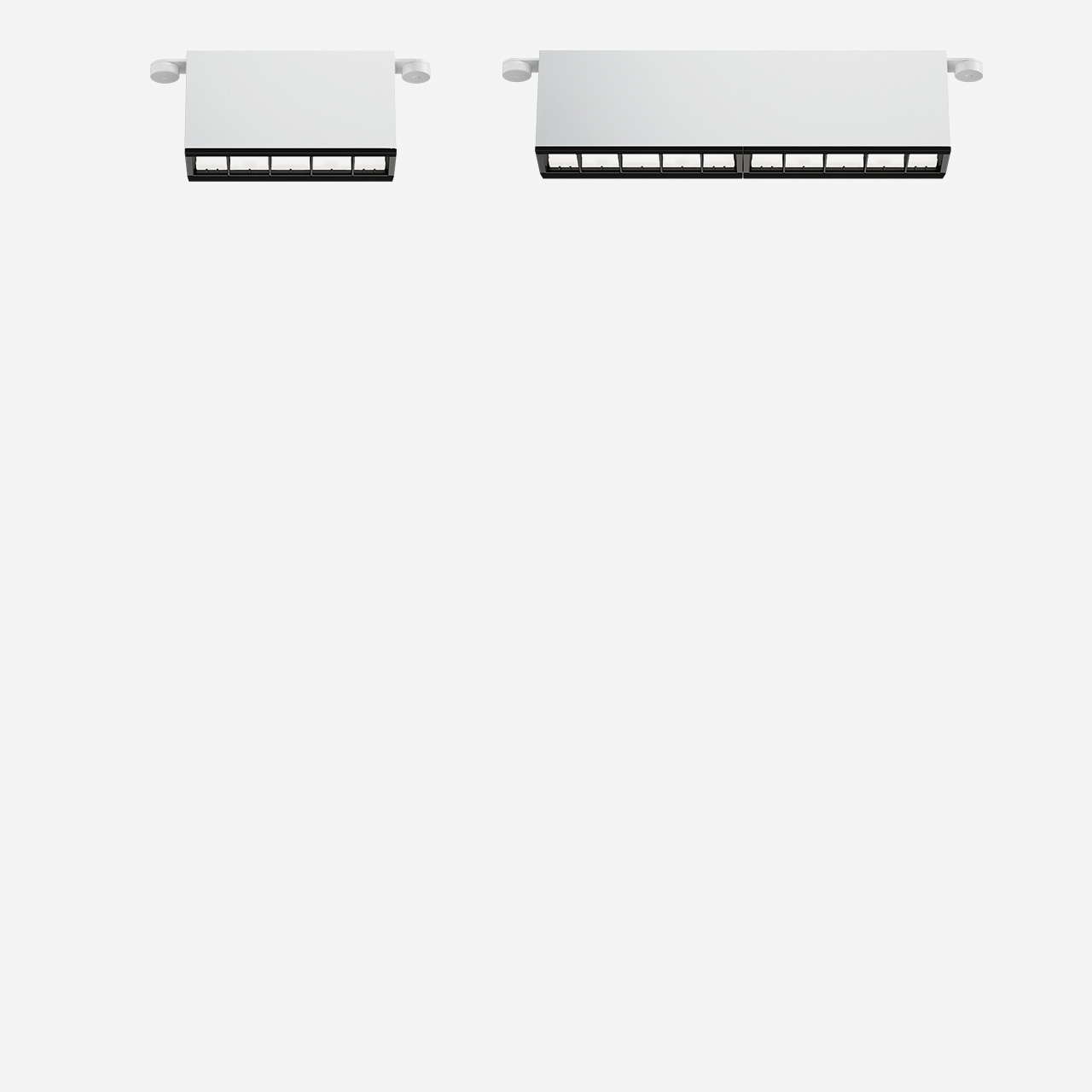

Laser Blade XS Wall Washer LGC for Filorail
Overview
- Linear recessed miniaturised luminaire for LED lamps, specialised for vertical wall lighting and complete with adapter for installation on a LV Filorail track.
- The patented optic system guarantees a homogeneous and effective emission on the wall, as well as avoiding shadow zones near the ceiling.
- The integrated Powerline technology allows each spotlight on the track (DALI Powerline) to be regulated separately.
- The black polycarbonate perimeter frame is designed to significantly reduce the effect of longitudinal glare while also guaranteeing maximum light uniformity on the wall.
- Flux enhancer; superpure aluminium reflector; asymmetrical textured PMMA screen.
- Main body made of extruded aluminium.
- A rapid tool-free system for connecting the adapter electrically and mechanically to the track.
- Mechanical fastening with adapter on track.
- DC/DC LED driver integrated in body. Direct connection on LV Filorail track.
Protection Ratings
-
Class II -
IP20 -
IP43
Certifications & Approvals
-
CCC Pending -
CE -
ENEC pending -
UK Conformity Assessed -
BIS
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
Opti Beam high-performance reflectors -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
Shape & Twist -
F Mark
