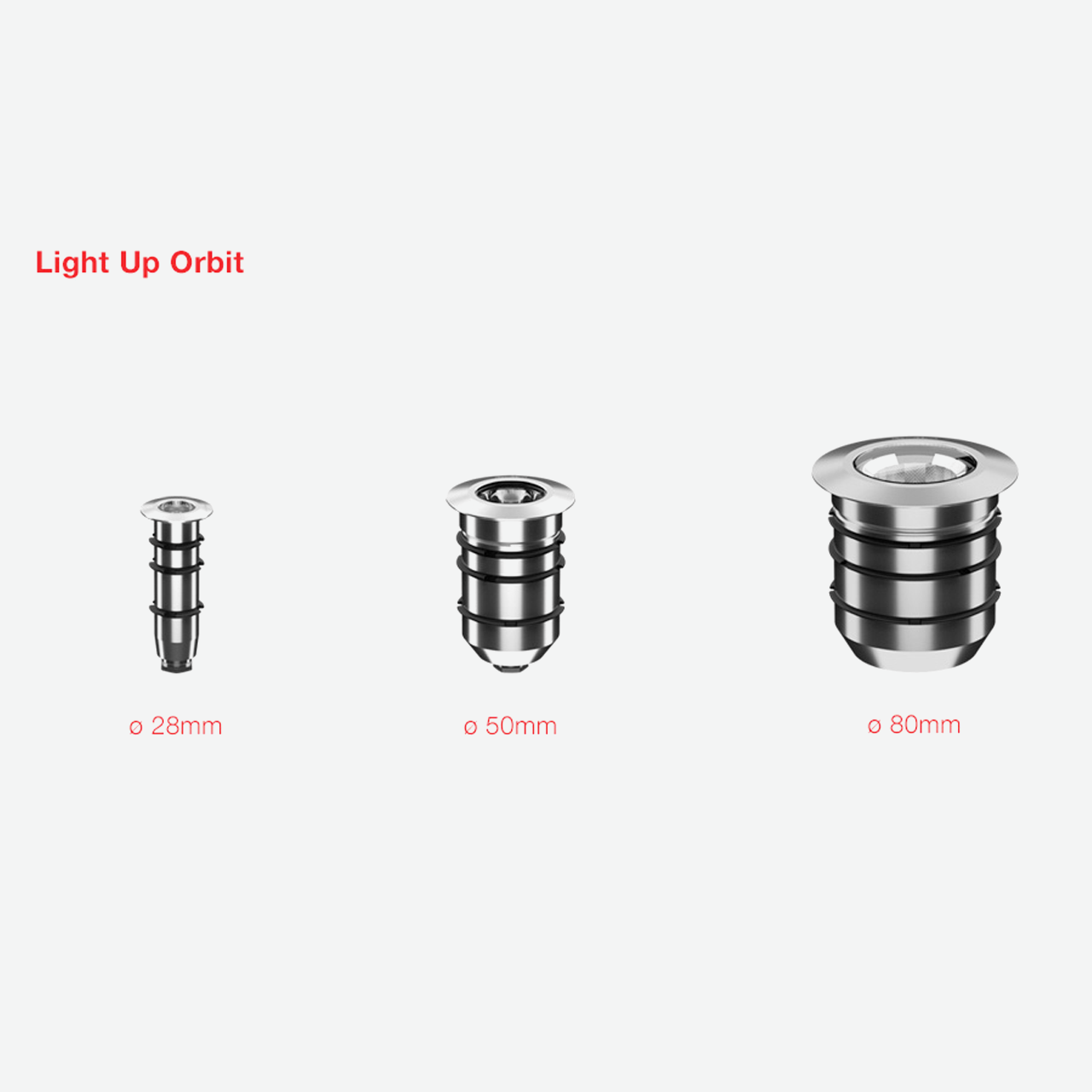

Light Up Orbit - body in stainless steel
Overview
- Floor/ground-, wall- and ceiling mounted recessed luminaires (except ø 80 mm) intended for use with LED light sources.
- Possibility of installation on the ground without frame casing.

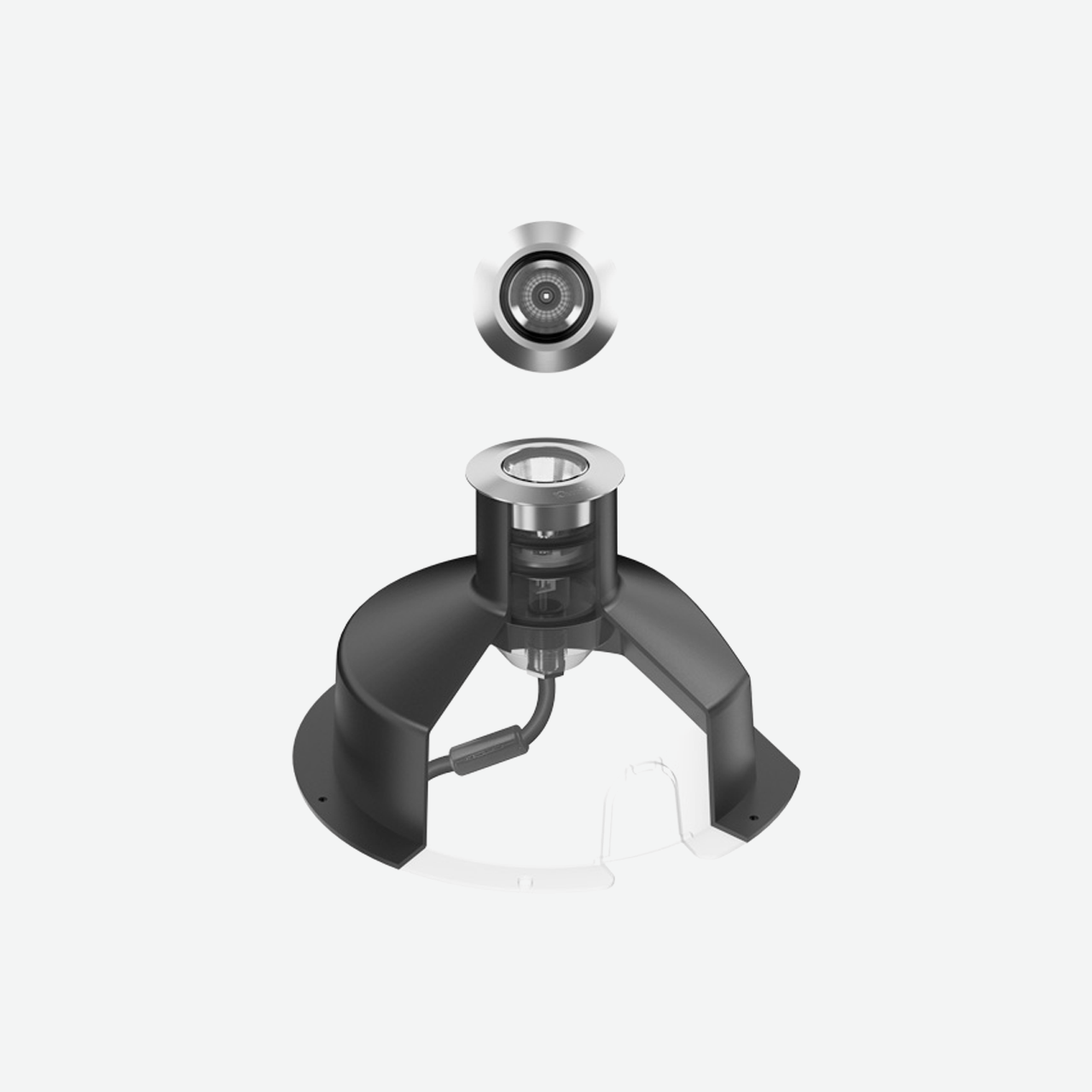

- Comprises body and frame casing.
- Body and frame in AISI 304 stainless steel installed without visible screws, hardened safety glass; A2 stainless steel cable gland complete with outgoing power supply cable of 2x1 mm² type. The cable is provided with IP68 antitranspiration device.
- Polypropylene plastic frame casing to be ordered separately
- Optics with plastic lenses or reflectors.
- Safe low voltage power supply at constant current (350/500/700mA depending on the type of specifi c recessed luminaires) to be ordered separately.
- Static load resistance 2000 Kg using frame casing to be ordered separately.
- Roll-over product in accordance with EN 60598-2-13 (torsion strength and shear load tests).
- Installation is not permitted in areas where snow ploughs are used at driving speed of over 50 km/h.
- Compact dimensions of the luminaire (<100mm).
- IP68 protection for product and cable alike using IP68 connectors. The product is not considered suitable for installation in swimming pools and fountains.
Protection Ratings
-
Class III -
IP66 -
IP68 -
IP68 10m
Mechanical Resistance
-
Protected against 2 J shocks -
Protected against 10 J shocks -
Protected against 20 J shocks -
Static load resistance 500kg -
Static load resistance 2000kg
Certifications & Approvals
-
CE -
ENEC-03 -
BIS -
QCERT
Key Features
-
Static load resistance -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
Floor-flush luminaire -
F Mark
