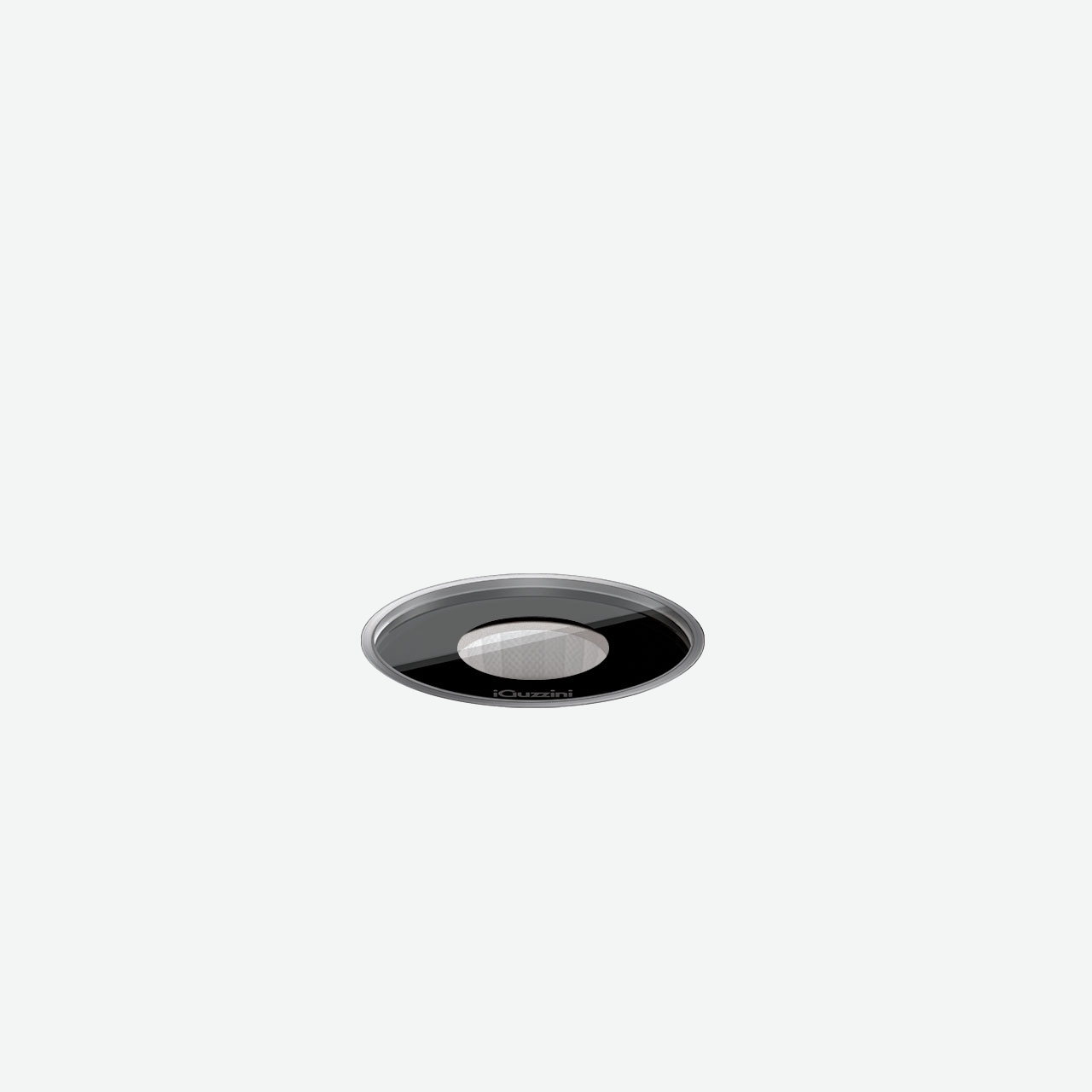

Light Up Orbit - body in stainless steel / all glass flush mounted
Overview

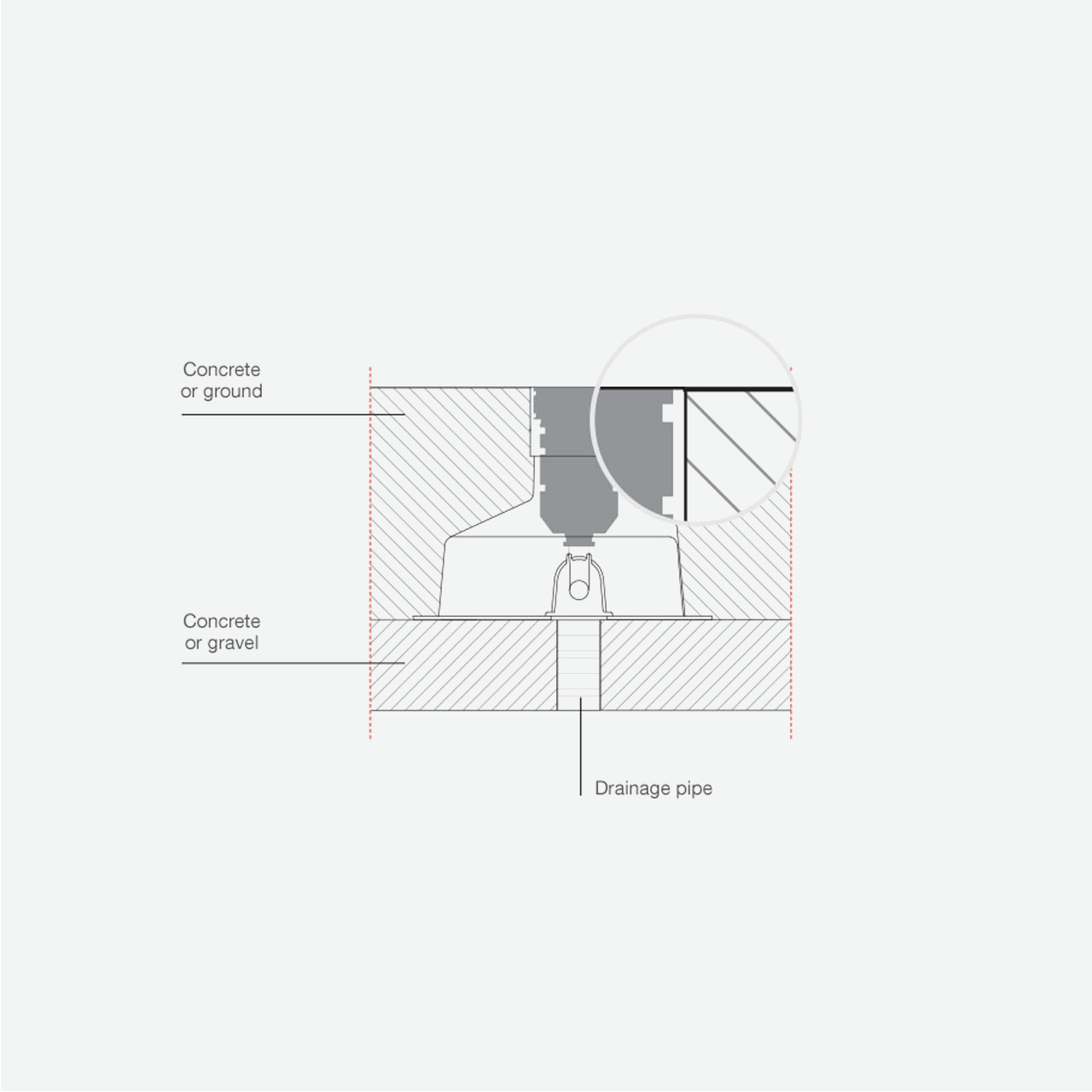

- Floor/ground-mounted recessed luminaire intended for use with LED light sources. Comprises body and frame casing.
- Body in AISI 304 stainless steel with safety glass flush with the floor and black screen printing; A2 stainless steel cable gland complete with output power supply cable type.2x1mm².
- The cable is provided with IP68 anti-transpiration device.

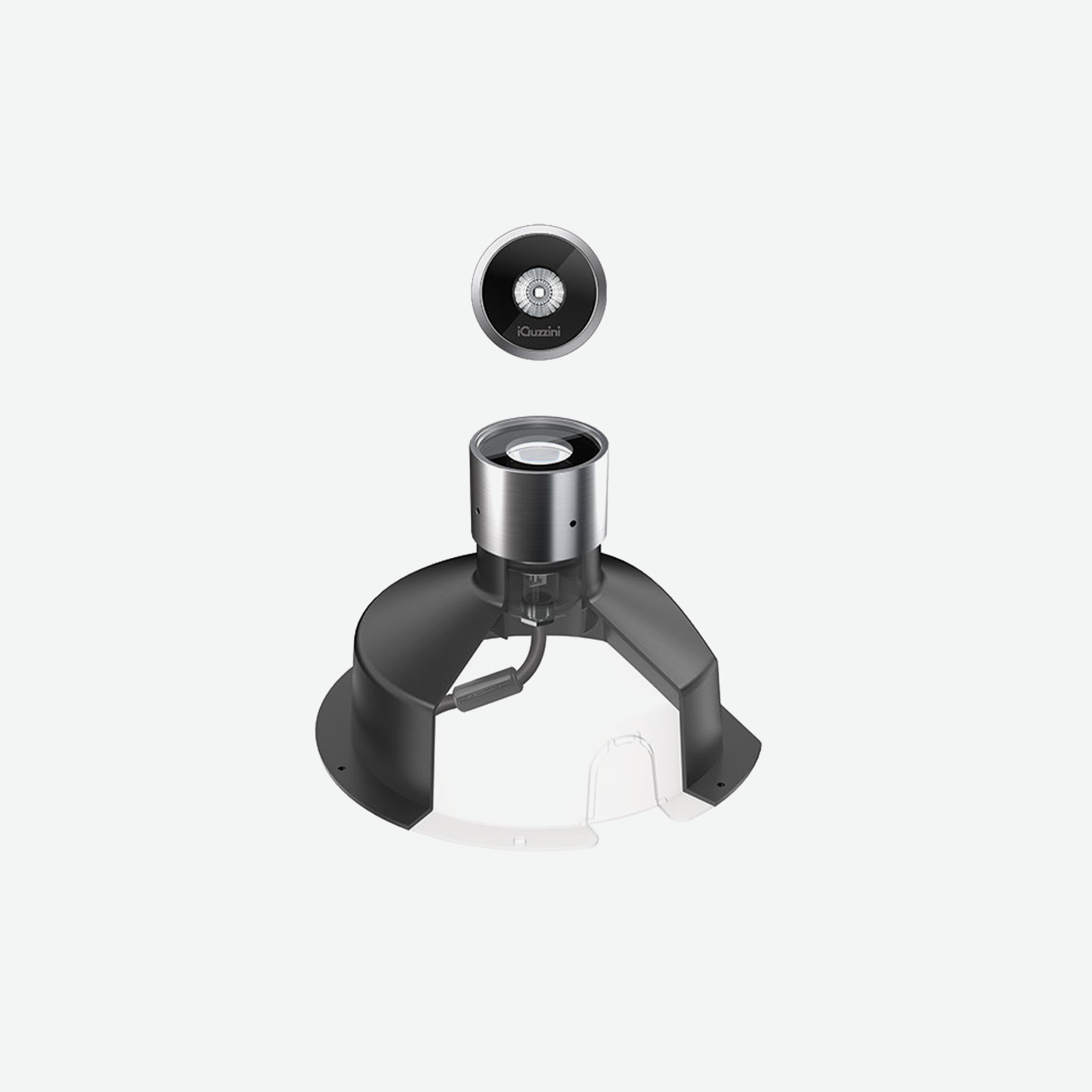

- Casing in polypropylene plastic complete with AISI 304 stainless steel ring, to be ordered separately.

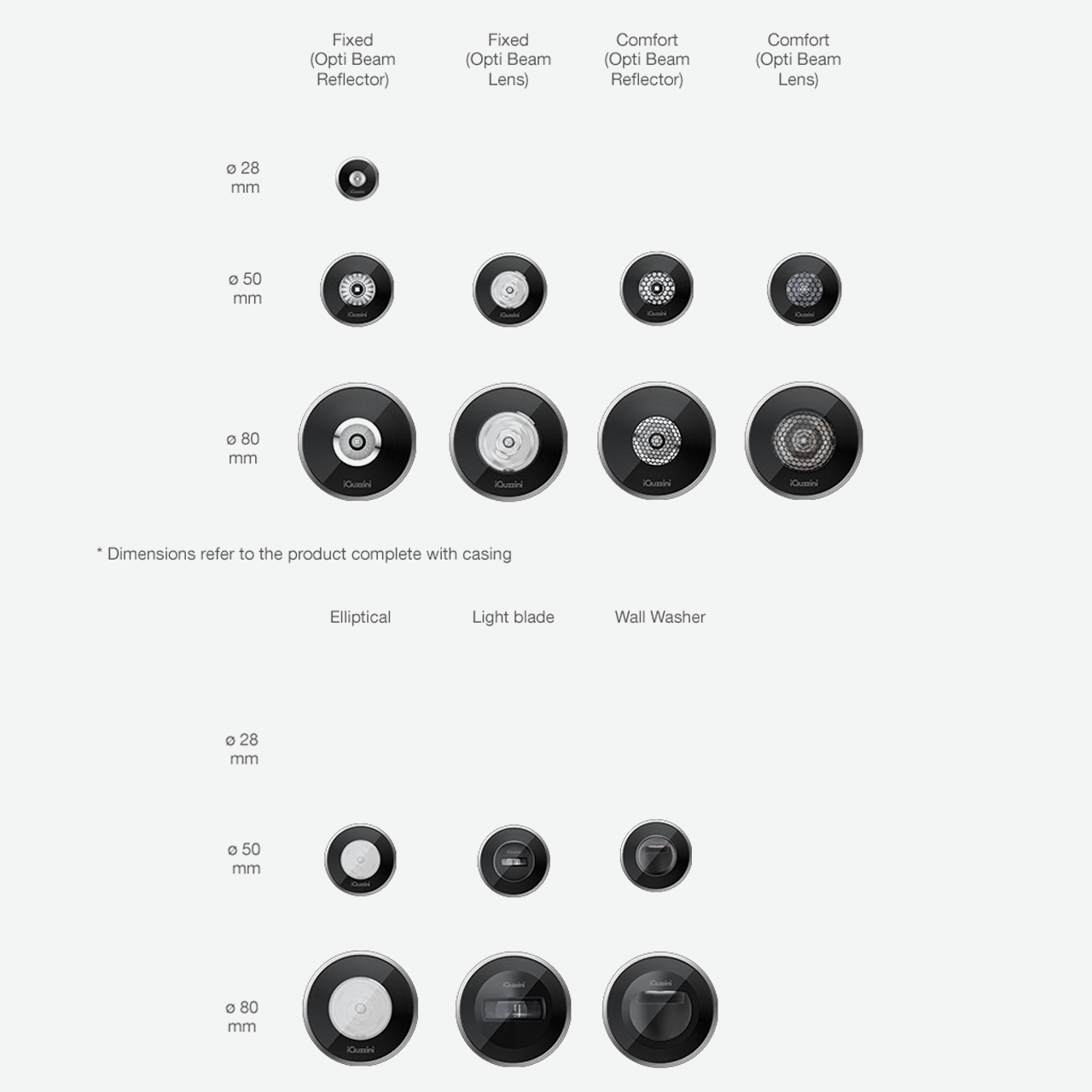

- Optics with plastic lenses or reflectors.
- Safe. low voltage power supply at constant current (350/500/700mA depending on the type of specific recessed luminaires) to be ordered separately.
- Static load resistance 2000 Kg using frame casing to be ordered separately.
- Roll-over product in accordance with EN 60598-2-13 (torsion strength and shear load tests).
- The luminaires cannot be used in lanes where they are subjected to horizontal stresses caused by acceleration, braking and/or changes of direction.

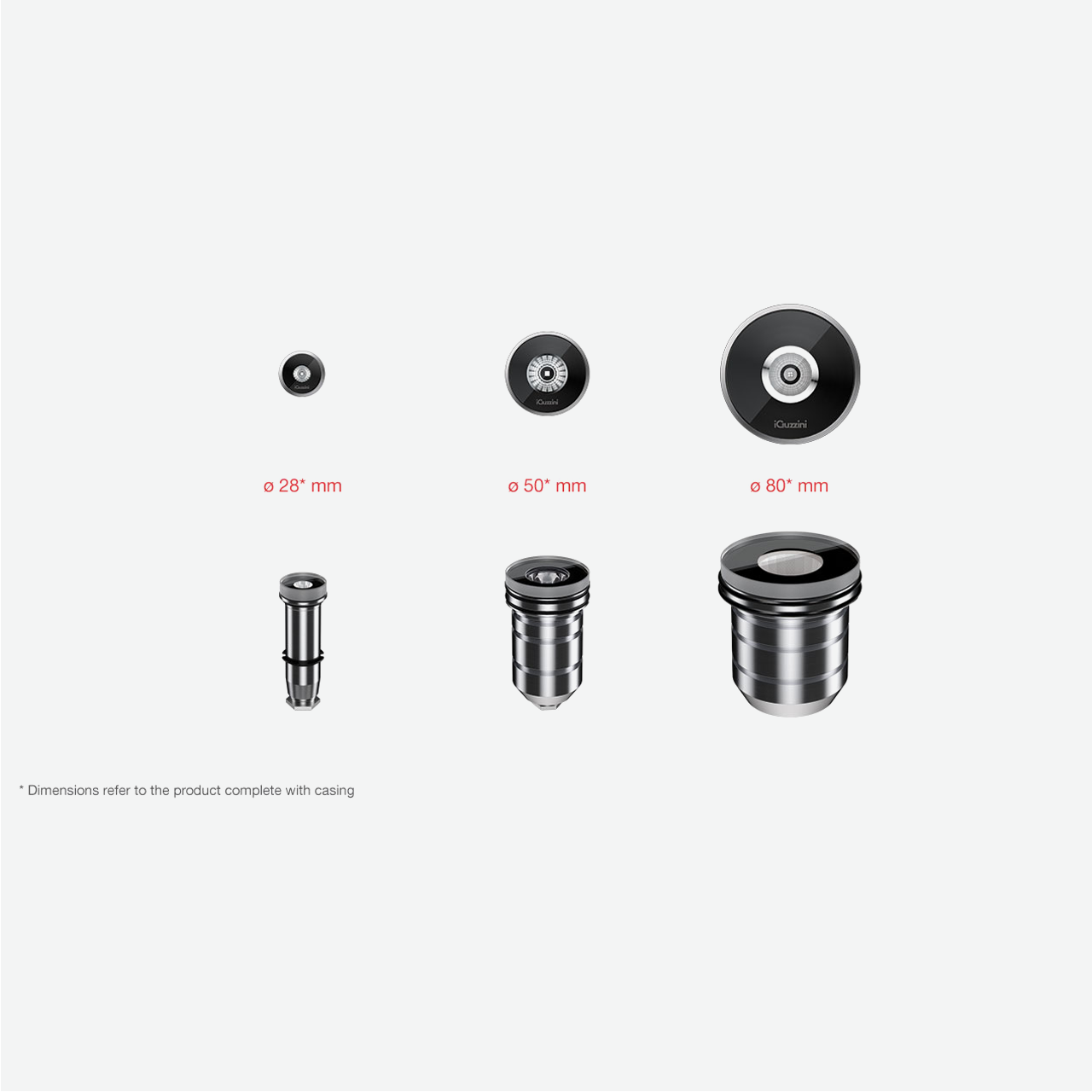

- Compact dimensions of the luminaire (<100mm) IP68 protection for product and cable alike using IP68 connectors.
- The product is not considered suitable for installation in swimming pools and fountains.
Protection Ratings
-
Class III -
IP66 -
IP68 10m
Mechanical Resistance
-
Protected against 2 J shocks -
Protected against 10 J shocks -
Static load resistance 2000kg
Certifications & Approvals
-
CE -
ENEC-03 -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Static load resistance -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
Floor-flush luminaire -
F Mark
