Multi Agorà pole mounted
Overview
- Urban lighting system intended for use with LED light sources.

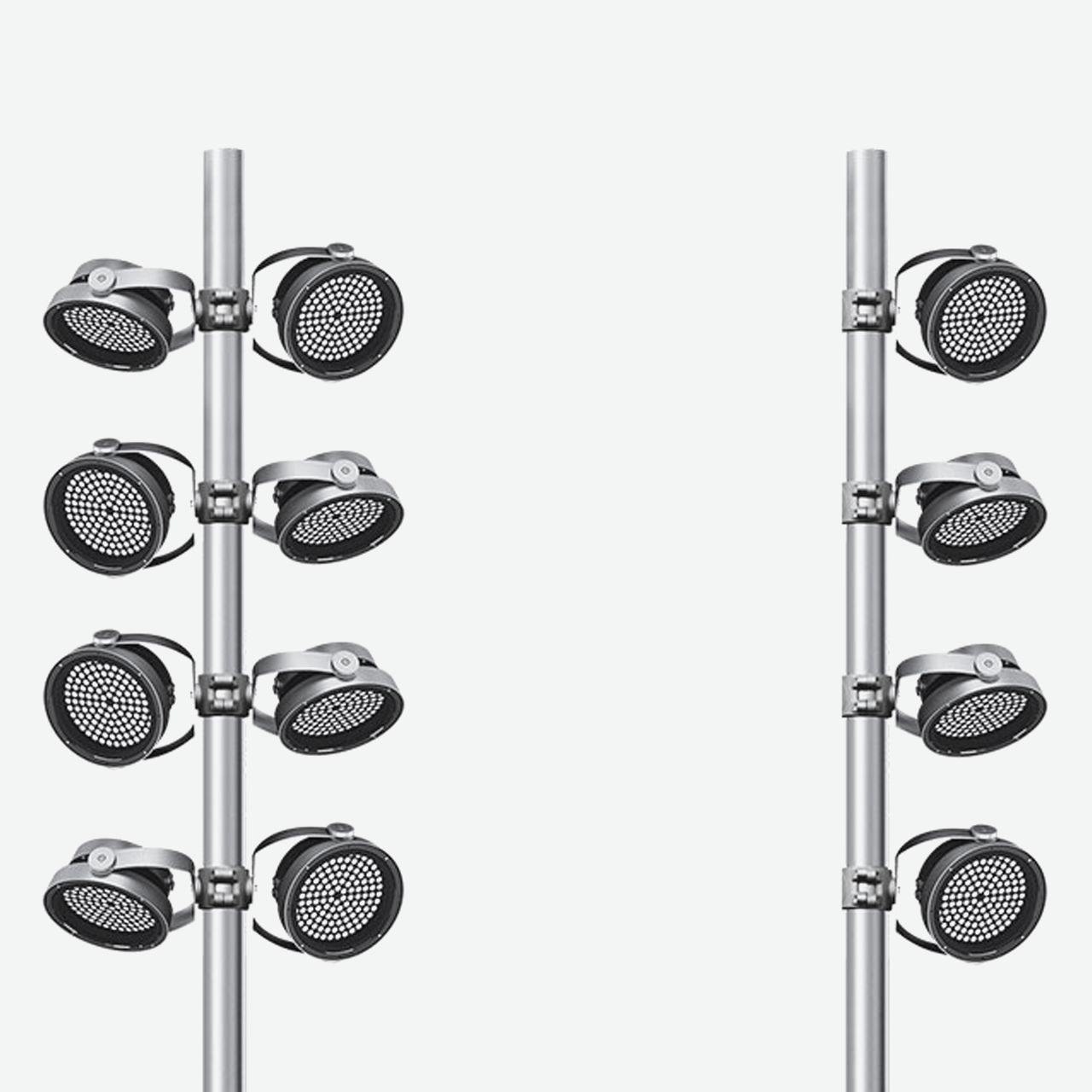

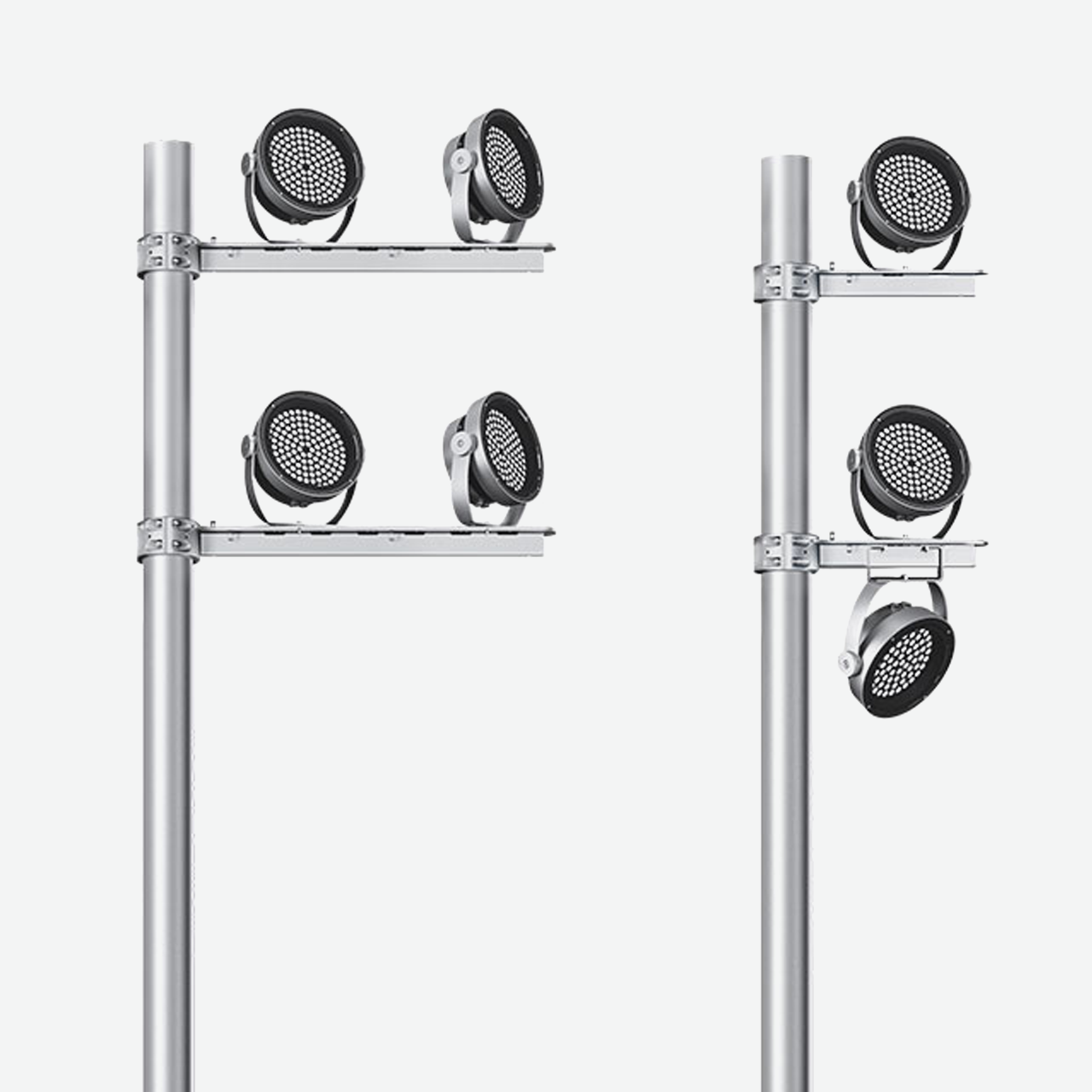

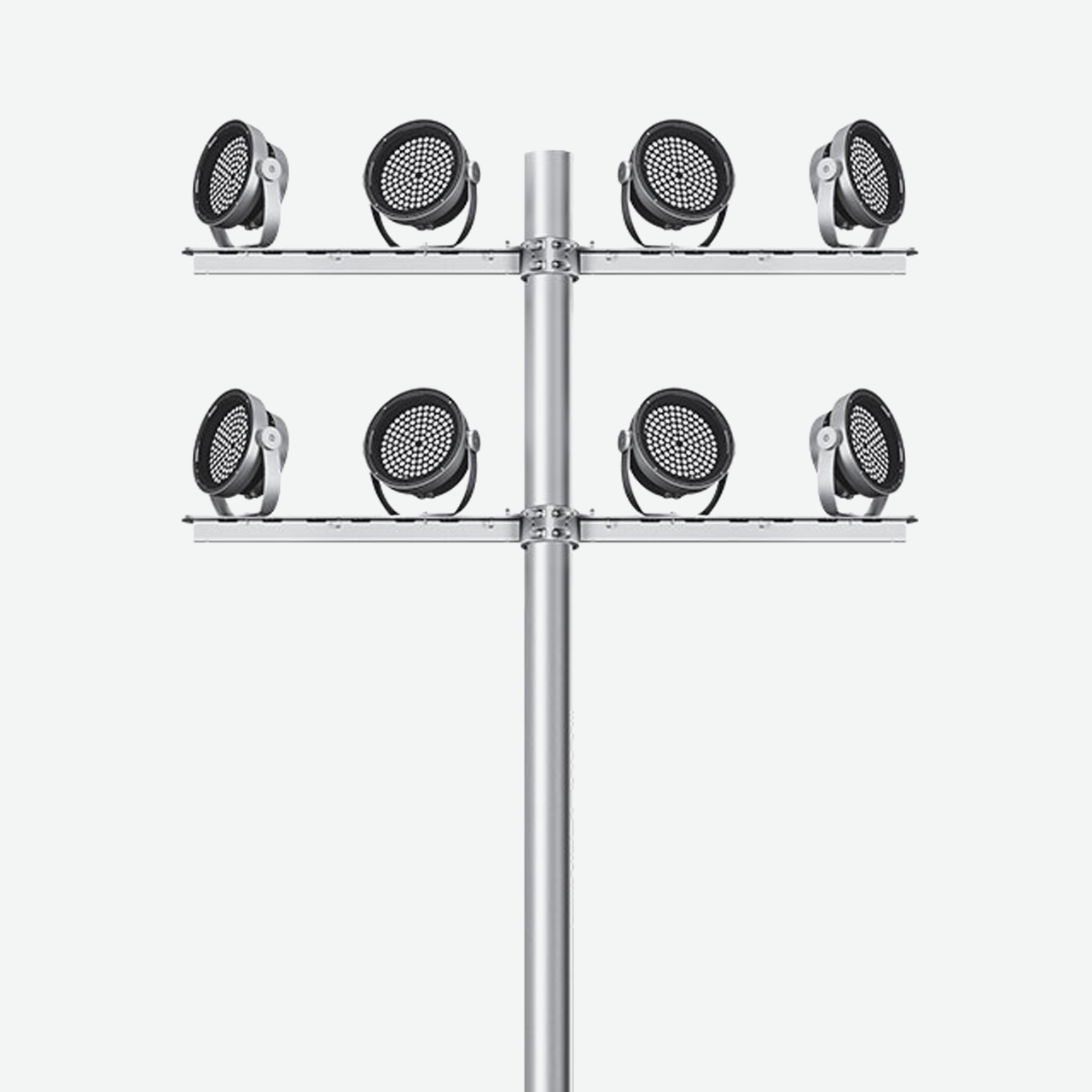

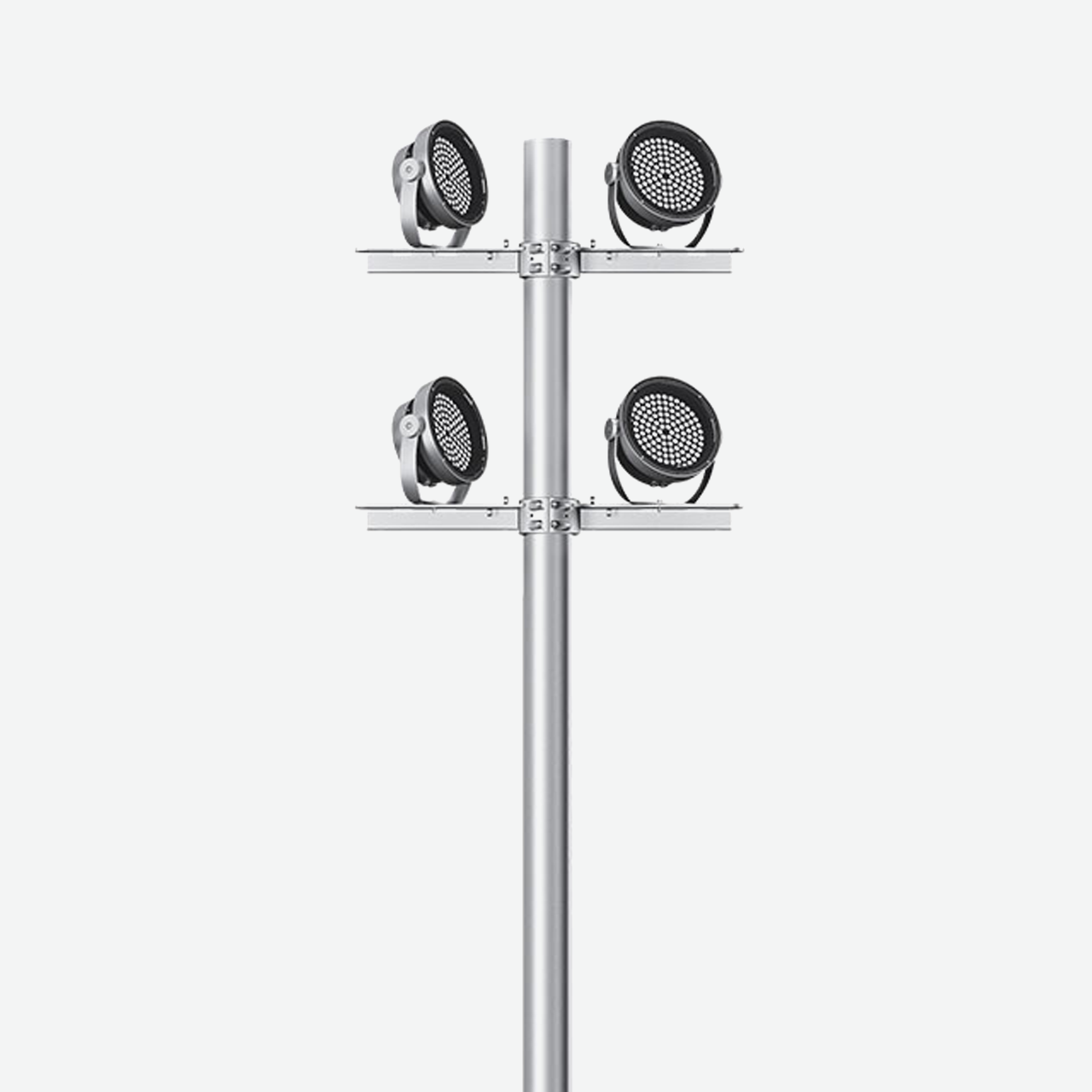

- Pole installation with single / double arm for ø102mm poles; Ø120mm (Compact version).
- Comprising an optical compartment in die-cast aluminium and transparent tempered sodiumcalcium safety glass. Compact version: the bracket is included with the optical compartment.
- Graduated scale and mechanical aiming lock.
- The Compact version includes the DALI power supply unit compatible with remote management systems.
- Slim version with DALI power supply to be ordered separately.
- External lighting and (Cylindrical Screen and Visor) and safety (Grid) accessories. internal lighting accessories (diffuser glass, lamellar louvre e elliptical distribution refractor).
- All external screws used are in A2 stainless steel.
- The BLE - DALI interface means that all DALI products can be managed via Bluetooth Low Energy.
Protection Ratings
-
Class II -
IP66 -
IP67
Mechanical Resistance
-
Protected against 5 J shocks
Certifications & Approvals
-
CE -
ENEC-03 -
PEP Ecopassport -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Graduated scale and mechanical aiming lock -
Opti Beam high-performance reflectors -
Compatibility with DALI protocol -
RGB with Real White versions -
F Mark -
Warm dimming
