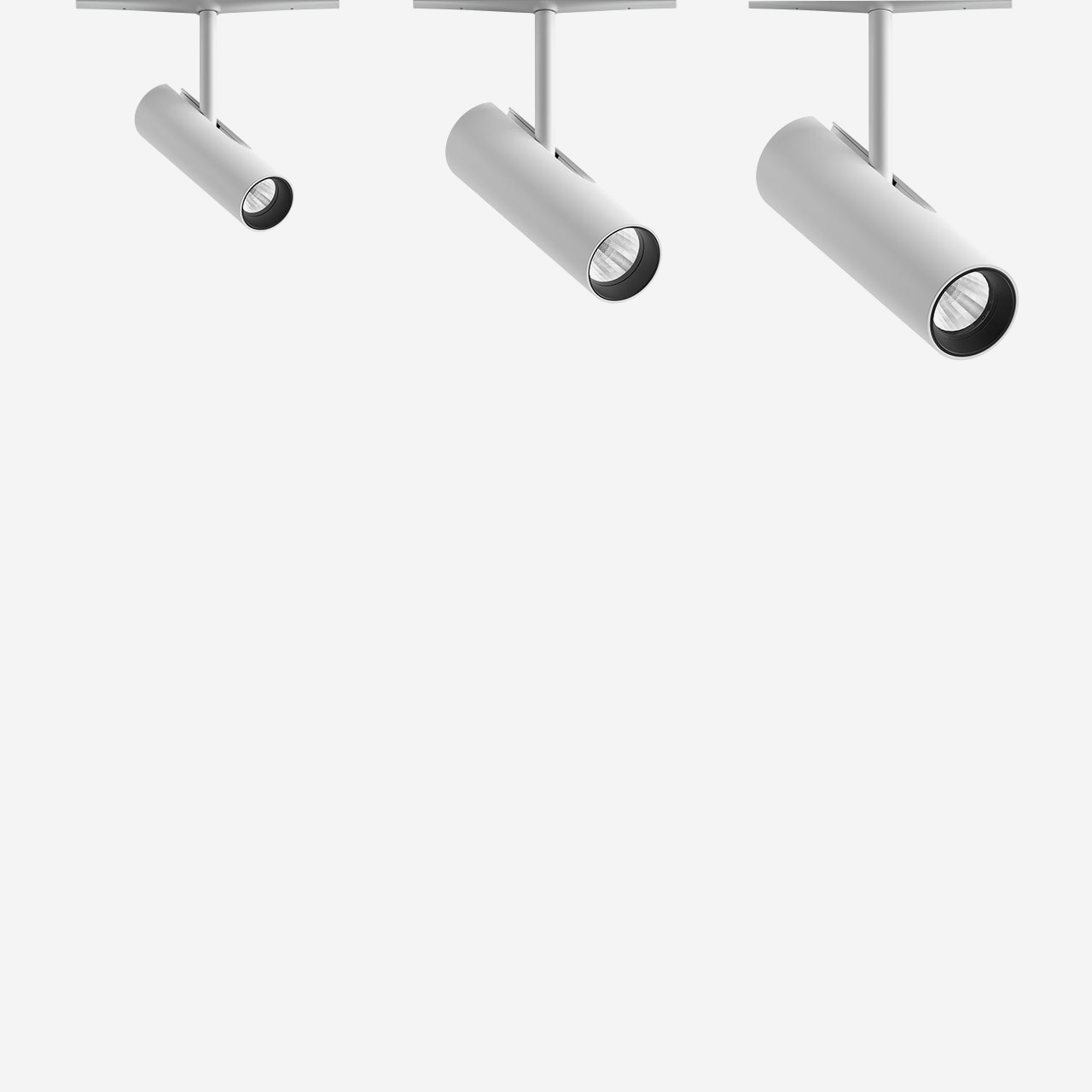

Robin ø 37 / 51 / 62 mm for Superrail DALI Powerline
Overview
- Miniaturised adjustable spotlight with adapter for installation on Superrail.
- Made of die-cast aluminium with passive dissipation system.
- The thermoplastic adapter includes the DC/DC driver circuit with dimmable DALI functionality.
- The integrated "Powerline" technology allows independent control of each light module inserted into the track.
- The swivel joints allow the spotlight to be rotated by 360° and tilted by 160° with the option of installing the spotlight on Superrail in both an "up" and "down” position.
- The set back position of the optic unit guarantees a high level of visual comfort.
- A high definition thermoplastic lens with the option of using additional accessories to create other light effects.
- A rapid tool-free system for connecting the adapter electrically and mechanically to the track.
- The 48V track coupling device is fitted with a mechanical anti-fall safety double block.
- An adapter is used to fix the device mechanically and tool-free to the Superrail.
- Track power supply unit to be ordered separately.
Certifications & Approvals
-
CCC S&E -
CE -
ENEC-03 -
NOM -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Adjustment of light beam opening -
Opti Beam high-performance reflectors -
installation without tools -
Dimmable luminaire -
Compatibility with DALI protocol -
Shape & Twist -
F Mark
