Underscore Ledstrip tube no-dot 24V
Overview

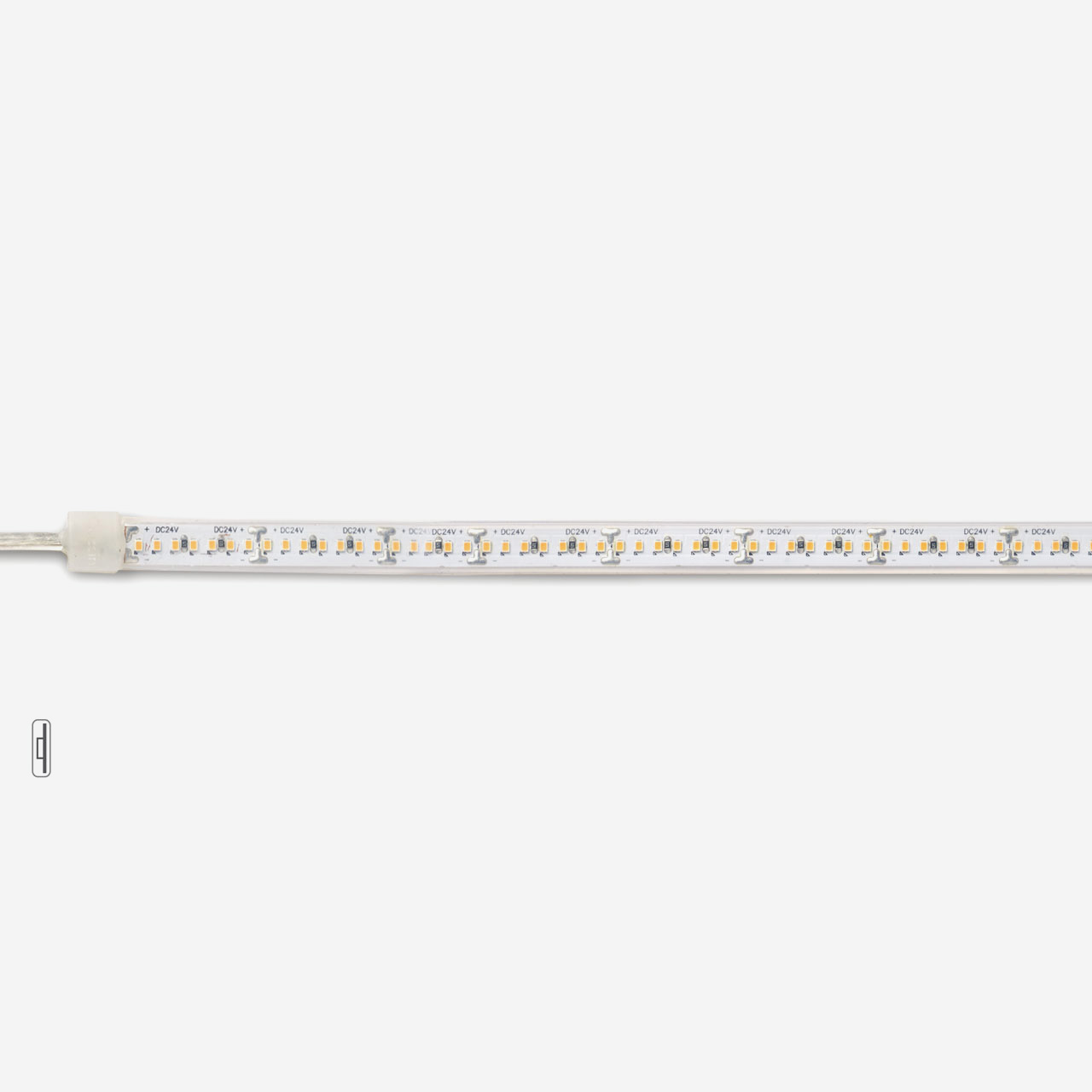

- Linear lighting product - featuring white monochrome LEDs with a high colour rendering index - located on a flexible white circuit: the close spacing of the LEDs along the circuit creates an extremely homogeneous and diffuse linear lighting emission.
- With end caps and transparent PVC sheath for external protection.
- The protection rating is IP65 for the full-length strip (not cut).
- The ends of the circuits are fitted with connectors which have an IP20 protection rating, so the installer is responsible for completing connector insulation operations.
- Supplied in 5-metre long coils wound in suitable supports. The package includes a connections kit for in line or power supply connections.
- Can be installed using the mounting accessories available.
- The strip can be cut at set distances between the LEDs (see instruction sheet). If intermediate cuts are made, use the caps included and carefully seal the cut ends to restore protection.
- 266 LEDs/m.
- Operating voltage 24V.
- To ensure correct heat dissipation, we suggest the strip is used in combination with the profiles available. power supplies to be ordered separately.
Protection Ratings
-
Class III -
IP20 -
IP65
Certifications & Approvals
-
CE -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
F Mark
